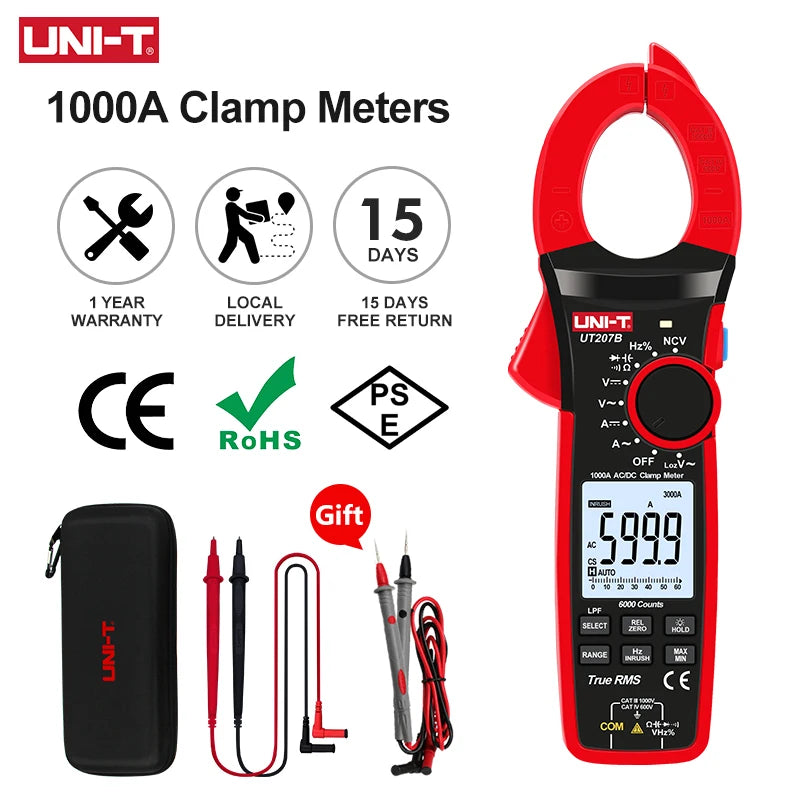

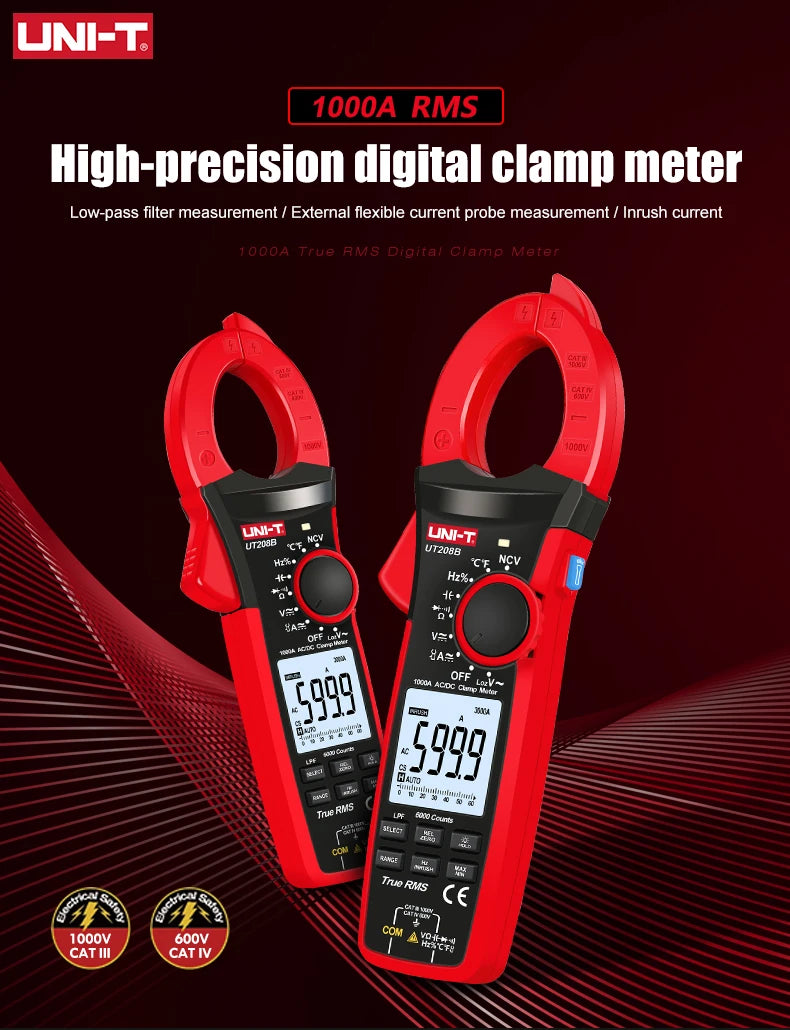

True RMS Digital Clamp Meter AC/DC 1000A 1000V Ammeter Pliers 6000 Count LPF

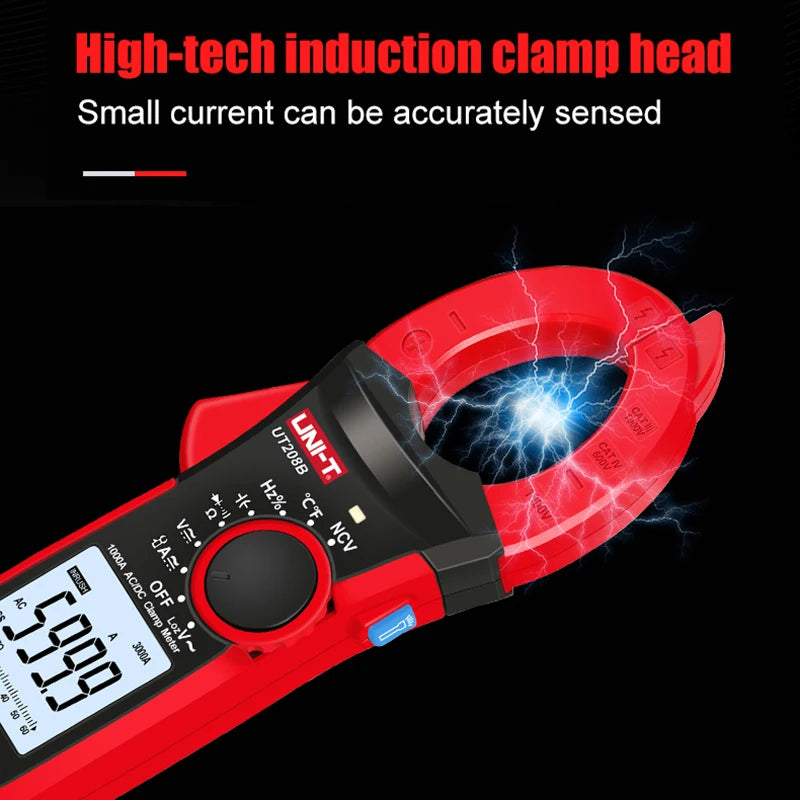

Experience precision measurement with the 1000A True RMS Digital Clamp Meter, a versatile tool for both professionals and DIY enthusiasts. This compact device features a 6000 count digital display, ensuring accurate readings for a wide range of electrical parameters. Designed for safety, it adheres to CAT III 1000V and CAT IV 600V standards, and is CE and RoHS certified.

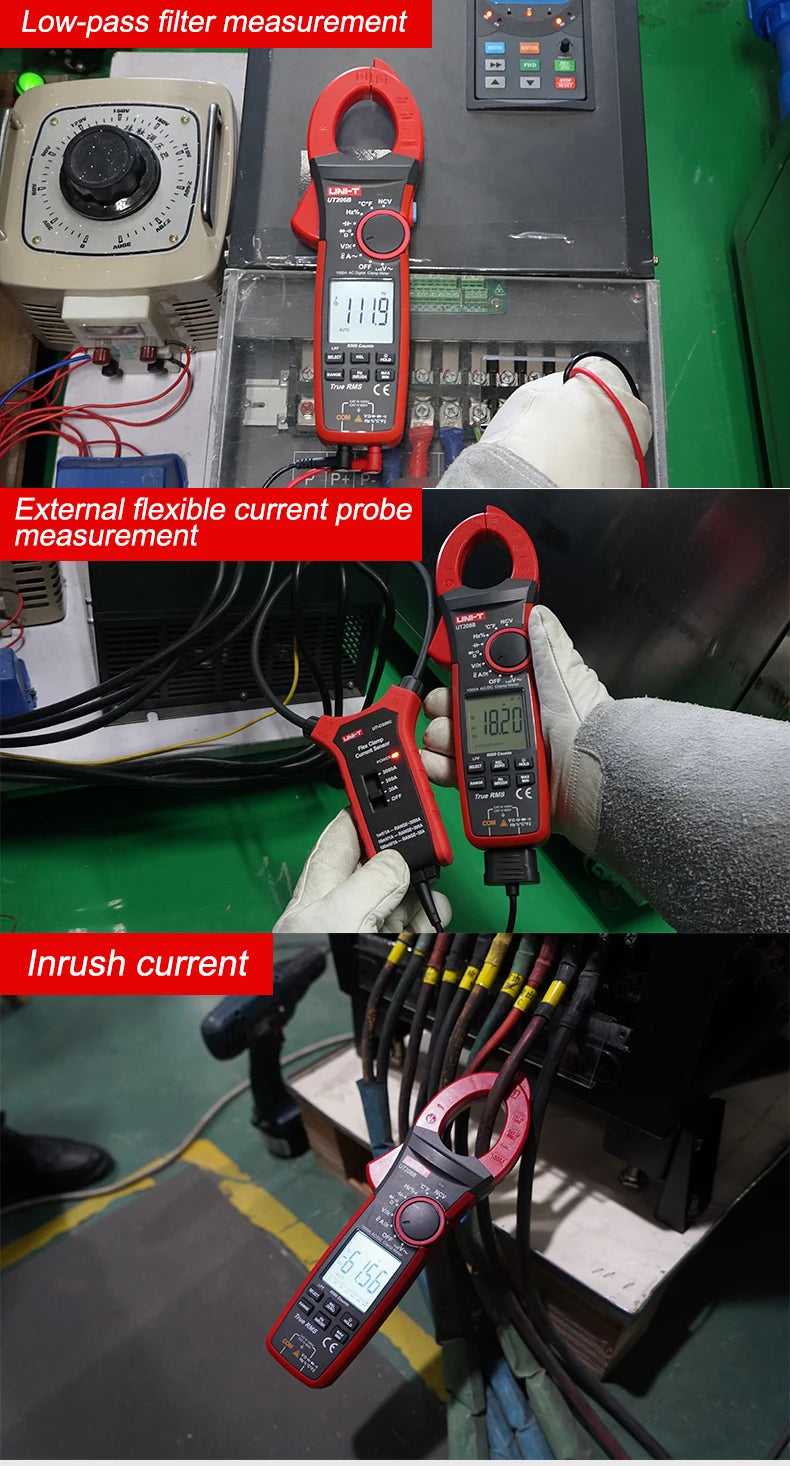

The clamp meter offers auto-ranging and includes a large LCD for easy viewing. Key functionalities include true RMS, auto scale memory, and NCV (non-contact voltage) detection, providing an audible and visual alarm for enhanced safety. Specific models (UT206B, UT207B, UT208B) incorporate additional features such as LOZ mode to filter out ghost voltage, and LPF ACV function ideal for measuring inverter and VFD voltages. Inrush current capture and transient current mode are also present in these models.
For those requiring temperature measurement, the UT206B and UT208B support high-precision readings with a 0.1°C resolution. Additionally, compatibility with a flexible current probe extends the AC current measurement range up to 3000A, available optionally.
### Key Features:

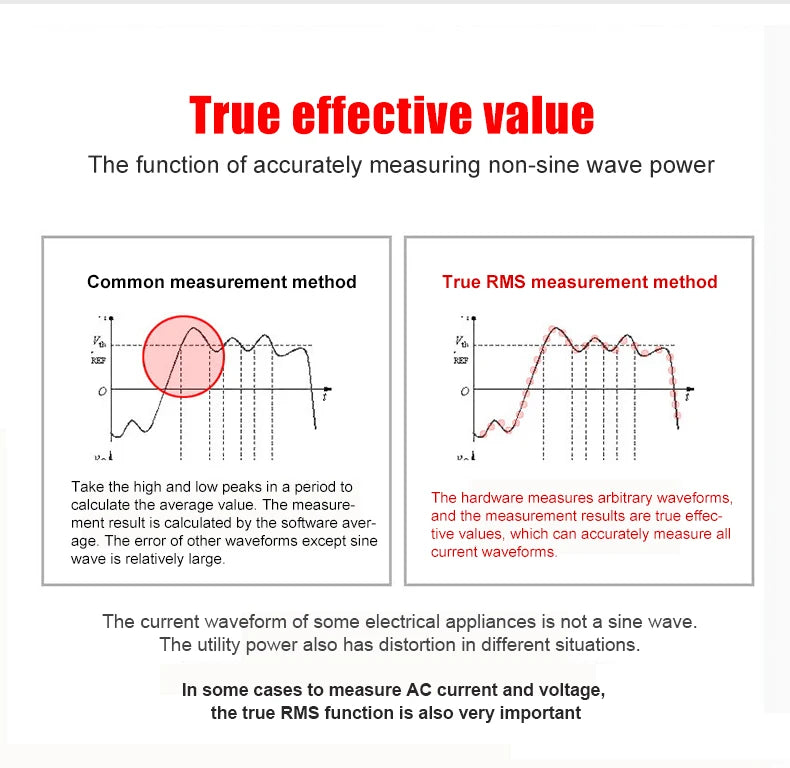

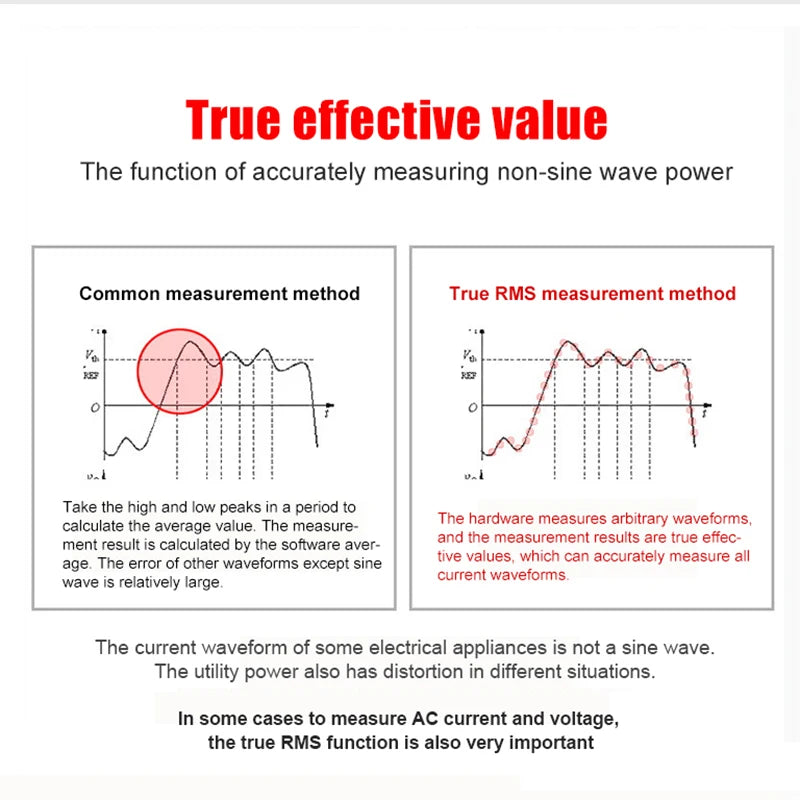

- True RMS for exact measurements

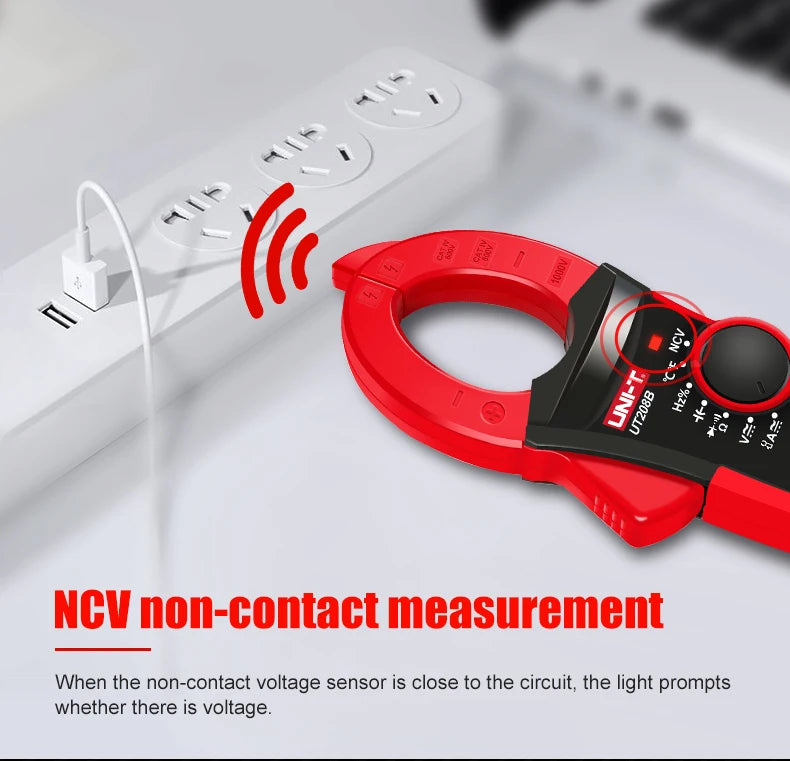

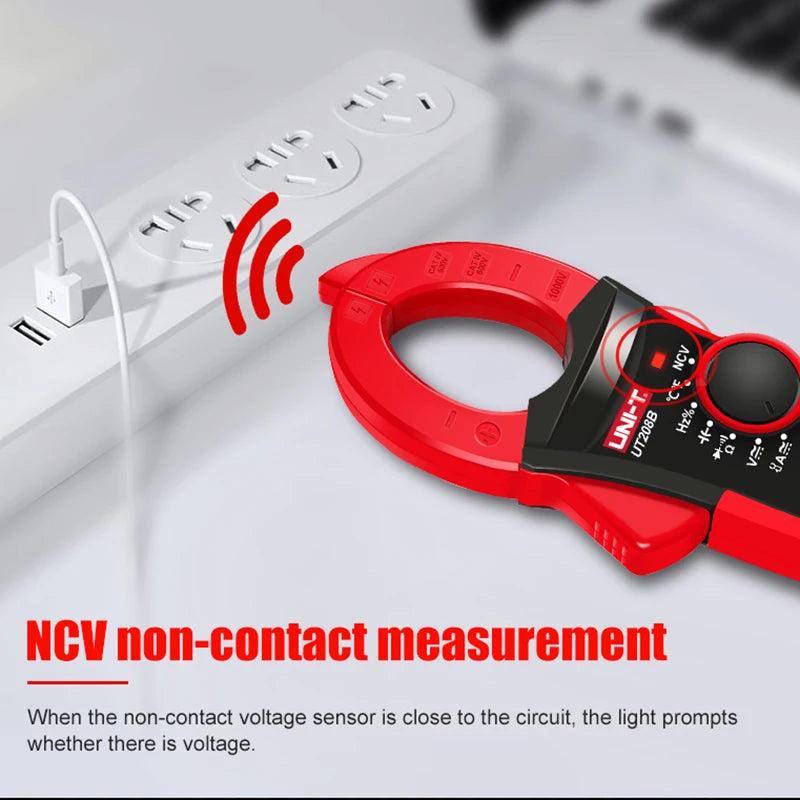

- NCV (audible/visual alarm) for safety

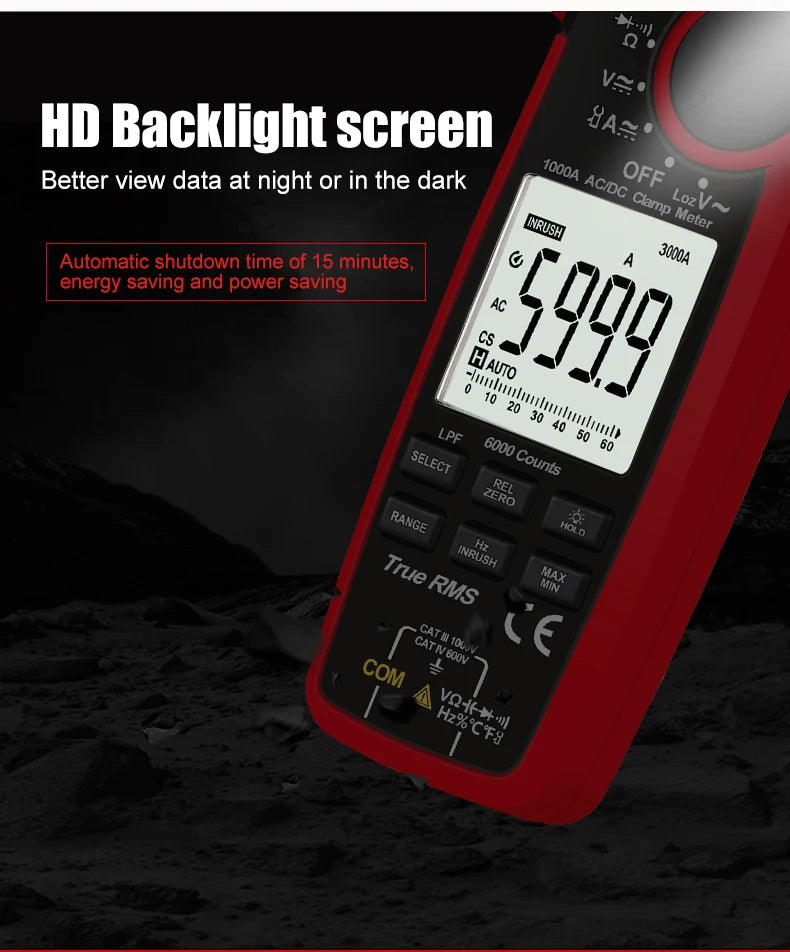

- Data Hold and backlight for convenience
- MAX/MIN/Relative Mode to capture operational ranges
- LoZ ACV and LPF ACV Functions (UT206B/UT207B/UT208B)
- Inrush Current Capture (UT206B/UT207B/UT208B)
- Optional Flexible Clamp for AC current extension
###

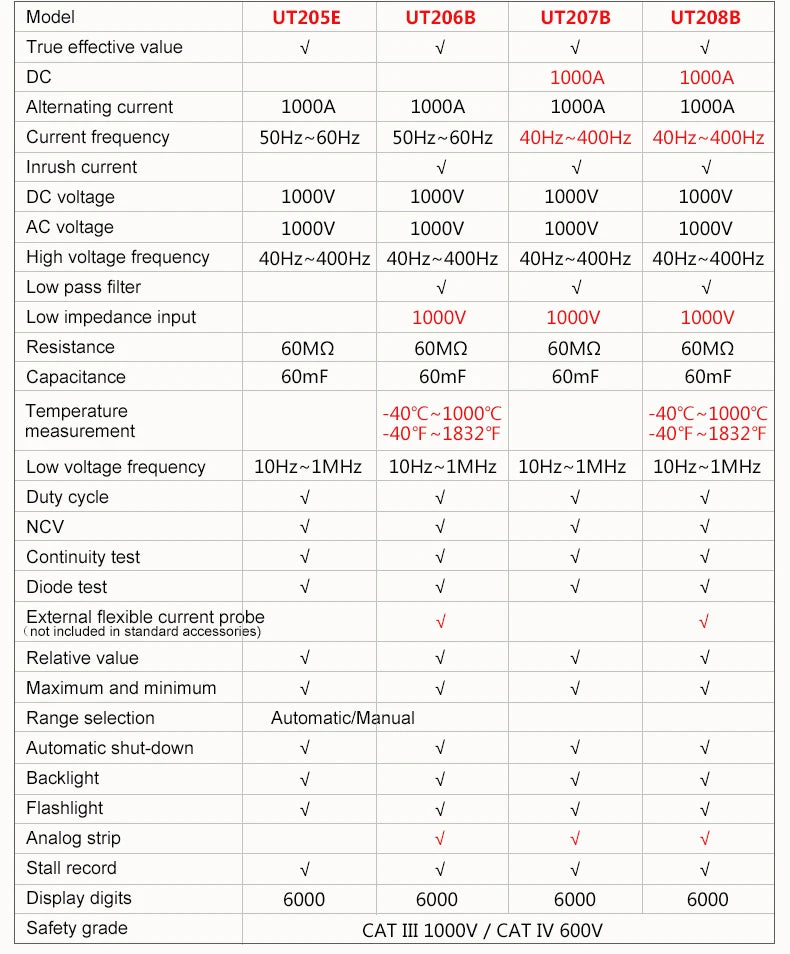

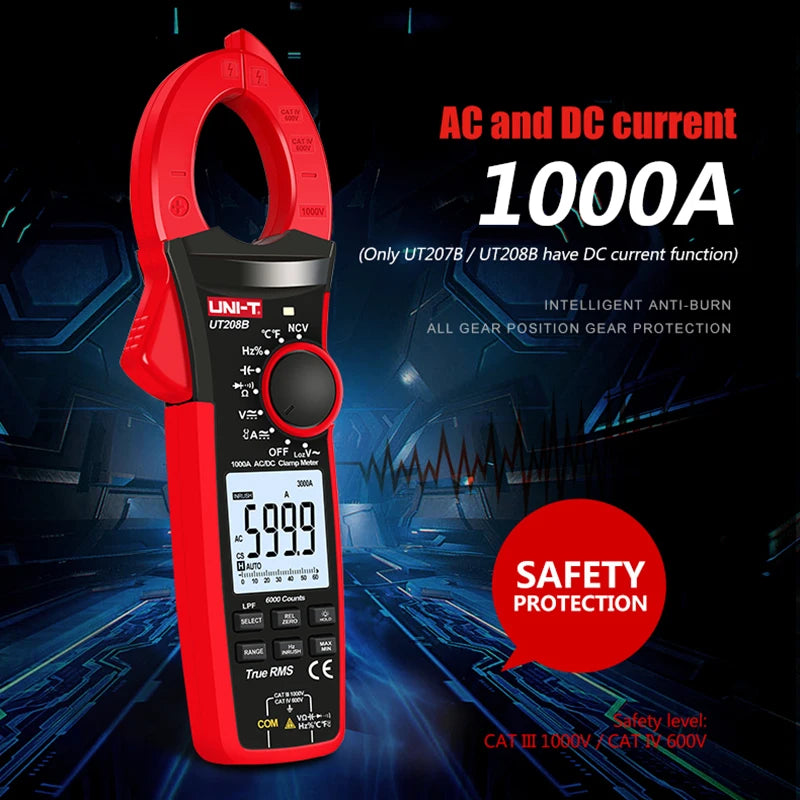

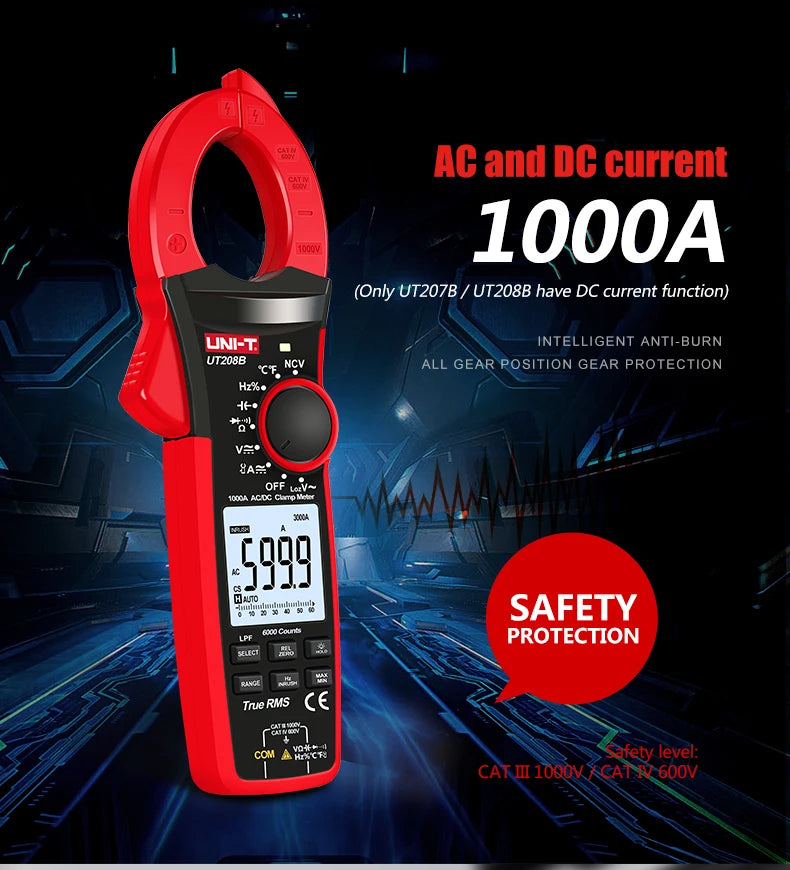

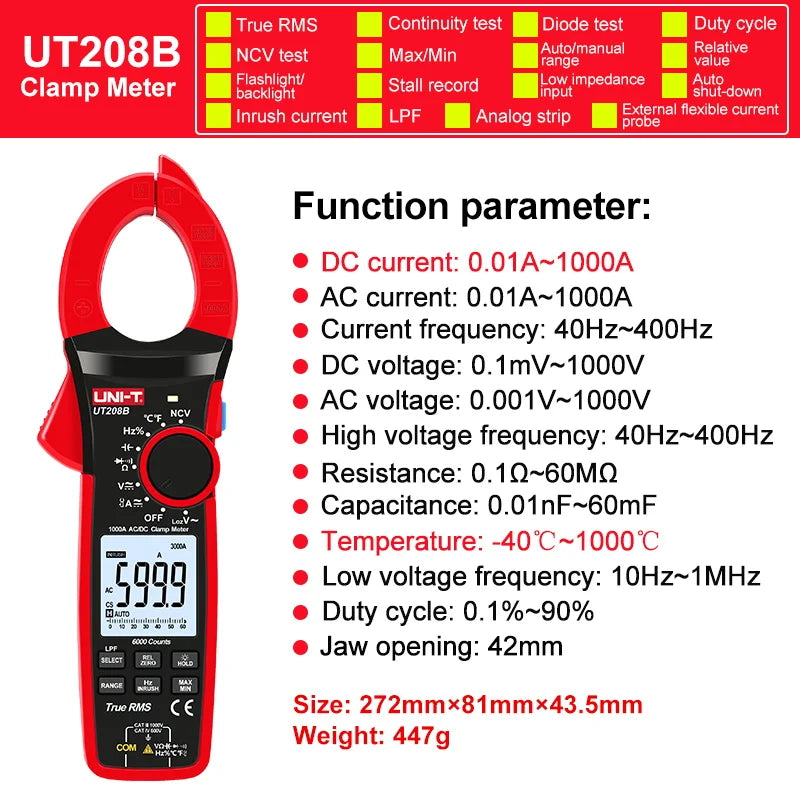

- AC Current Range: Up to 1000A
- DC Current Range: Up to 1000A (UT207B/UT208B)
- Voltage Range: AC/DC up to 1000V
- Resistance Range: Up to 60MΩ
- Capacitance Range: Up to 60mF

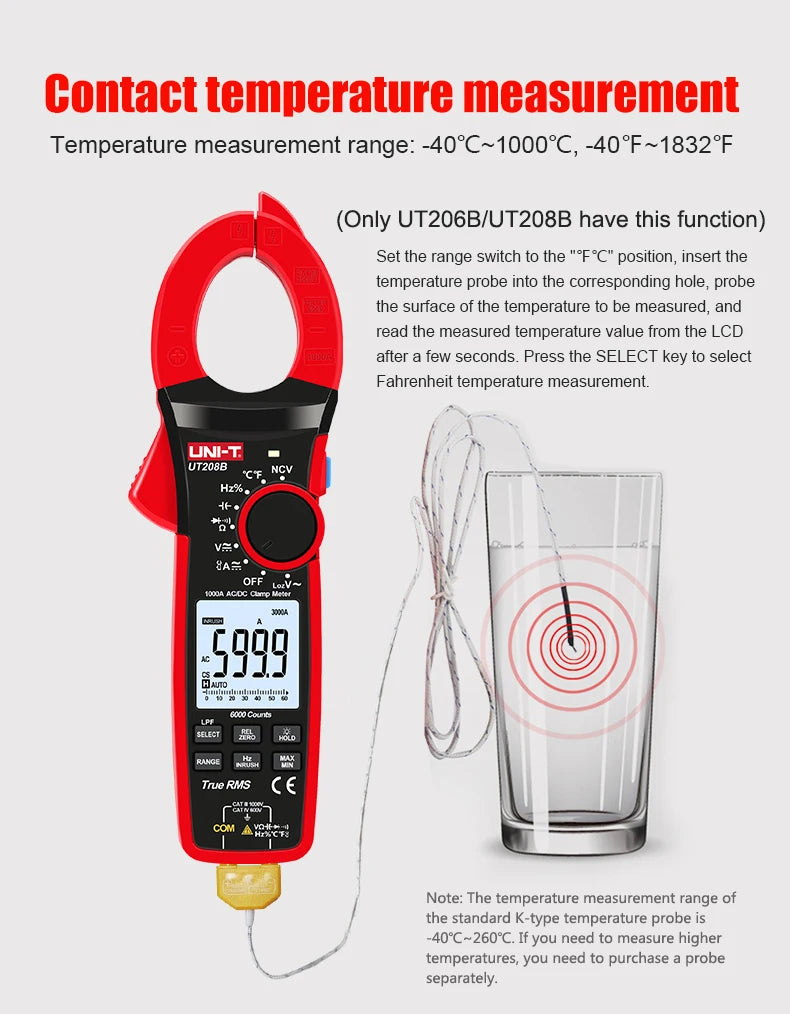

- Temperature Measurement: -40°C to 1000°C (UT206B/UT208B)
- Frequency Response: Up to 400Hz for AC voltage/current
### General Characteristics:
- Dimensions: 272mm x 81mm x 43.5mm
- Weight: 420g - 465g depending on model
- Display: 43mm x 45mm
- Power Supply: 3 x 1.5V batteries (not included)

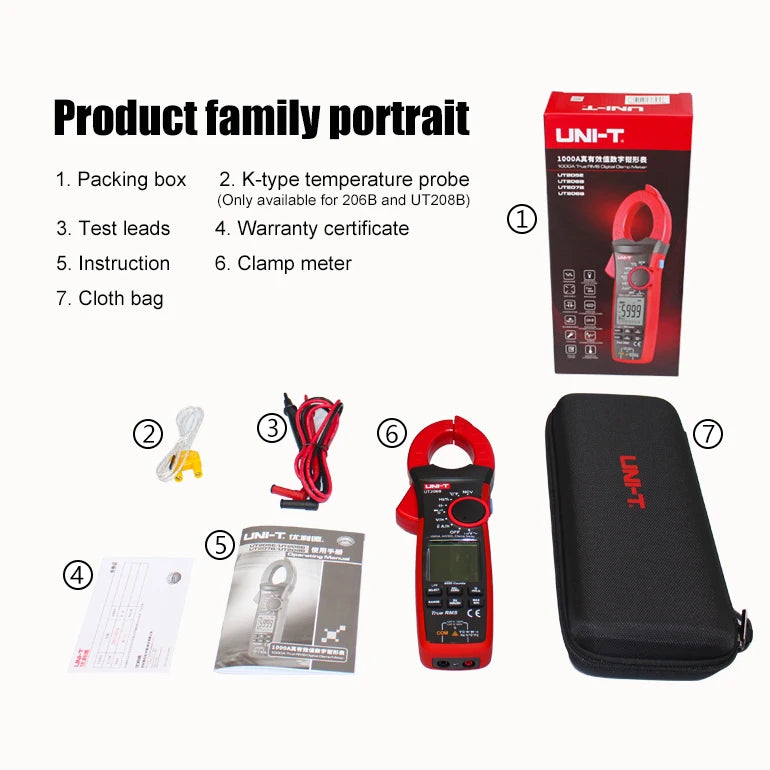

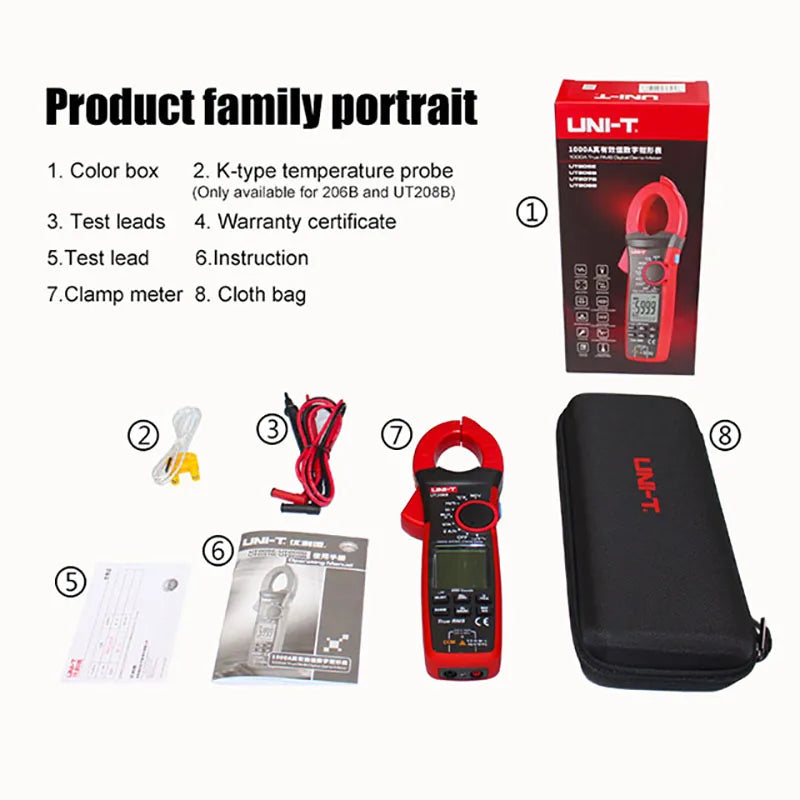

- Accessories: Test leads, carrying bag, manual
This clamp meter is a must-have tool for precise electrical diagnostics, delivering reliability and convenience in one robust package.
