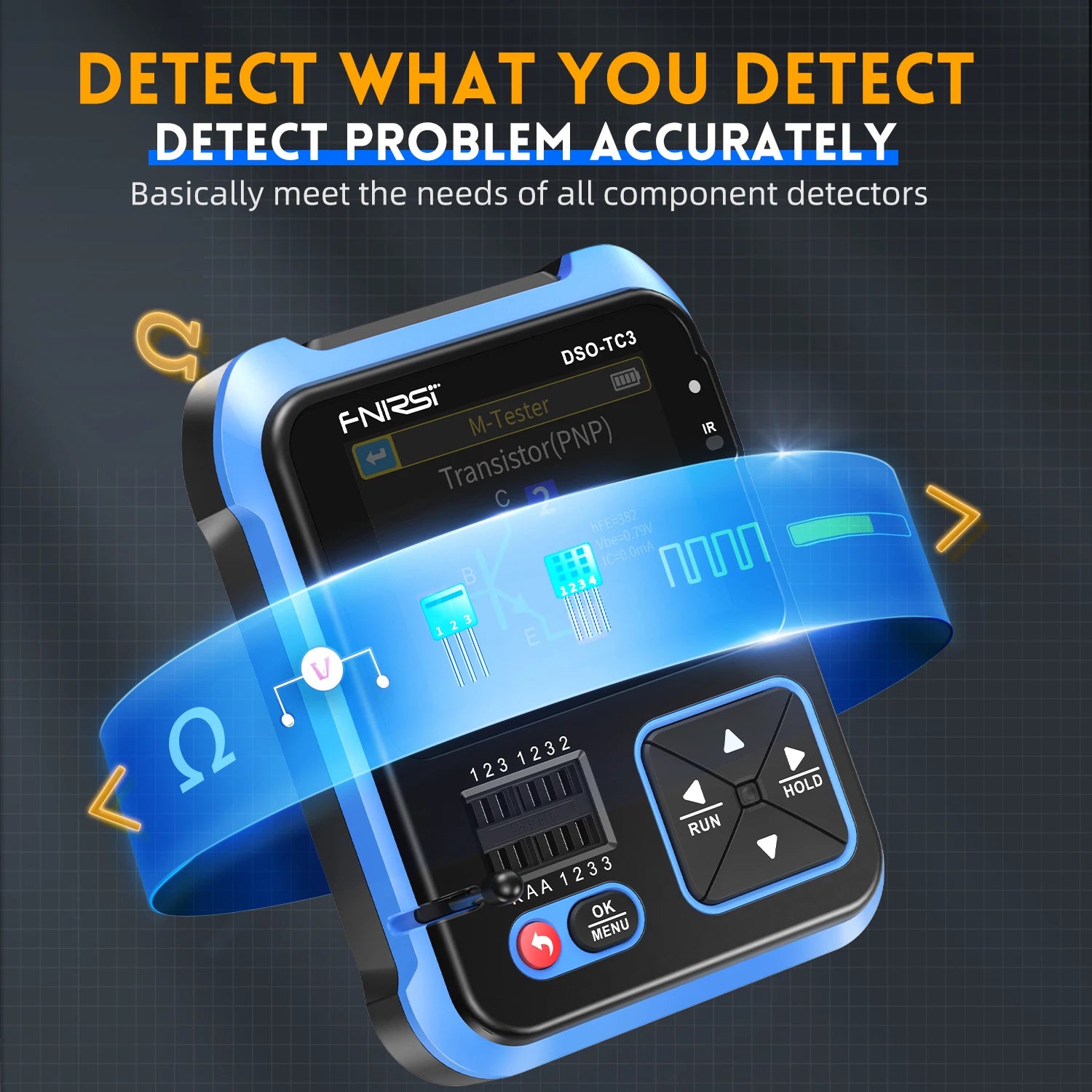

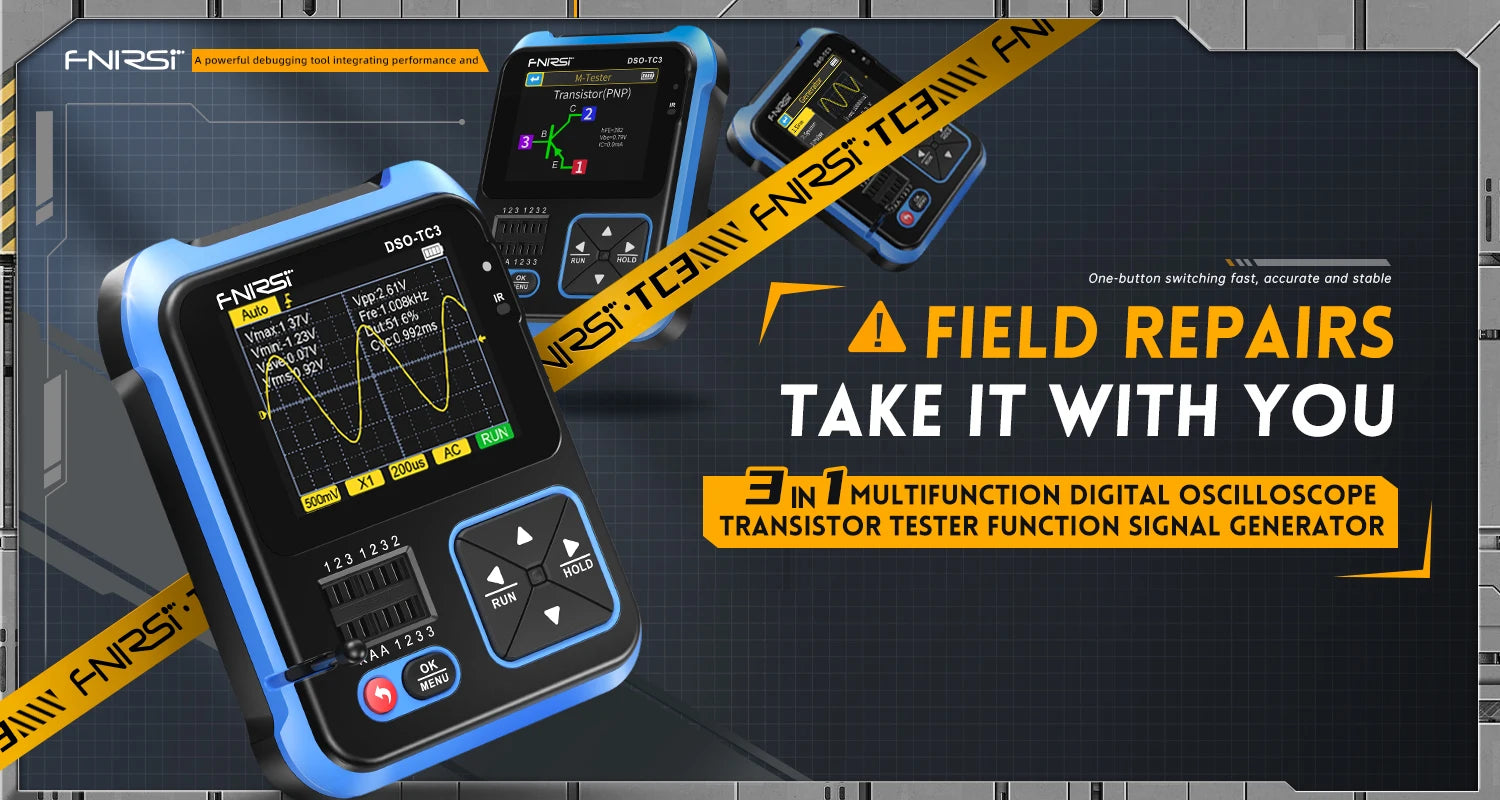

Portable Digital Oscilloscope Multimeter Transistor Tester 3-in-1 with Diode Voltage LCR Detection PWM Output

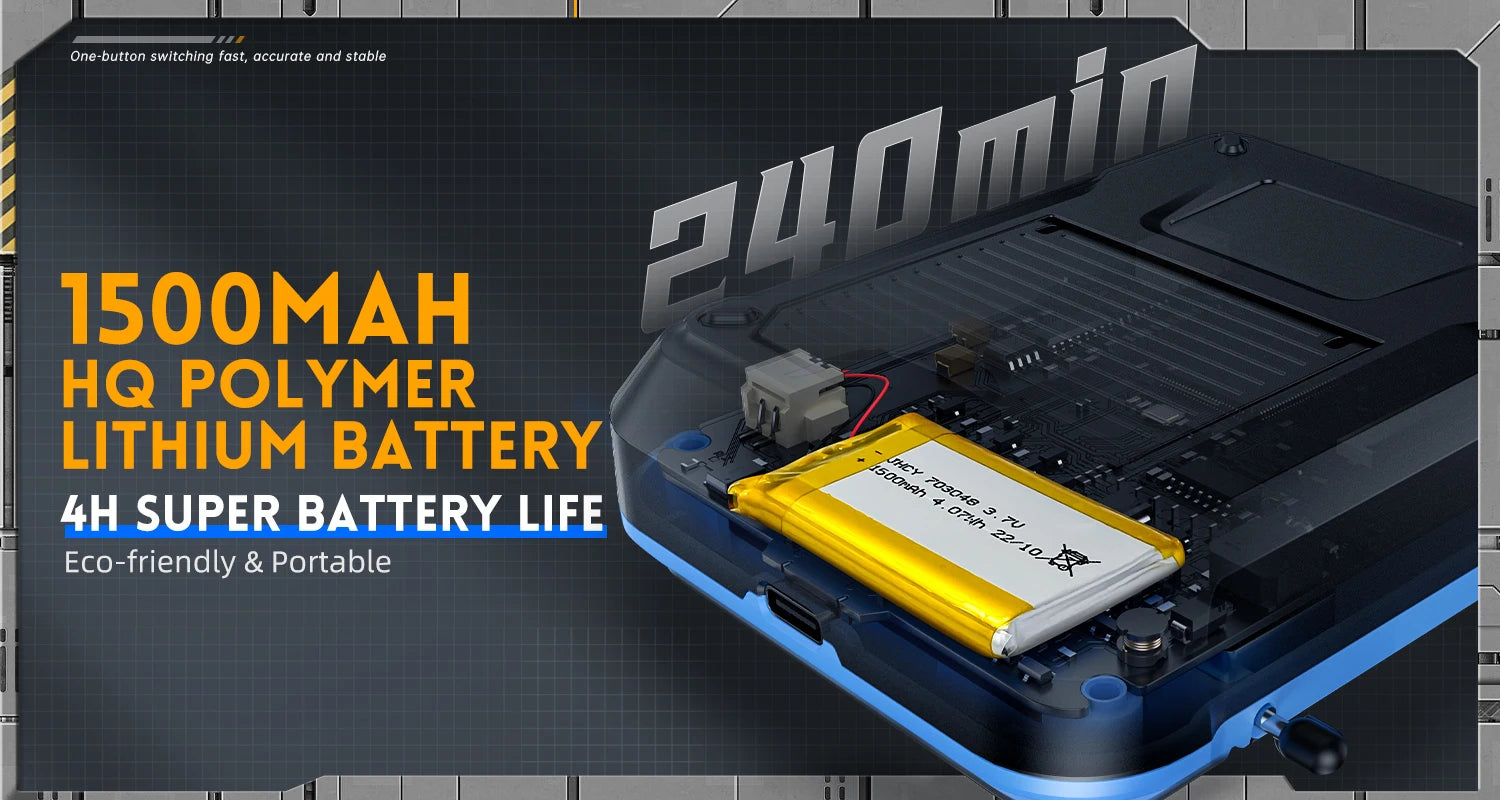

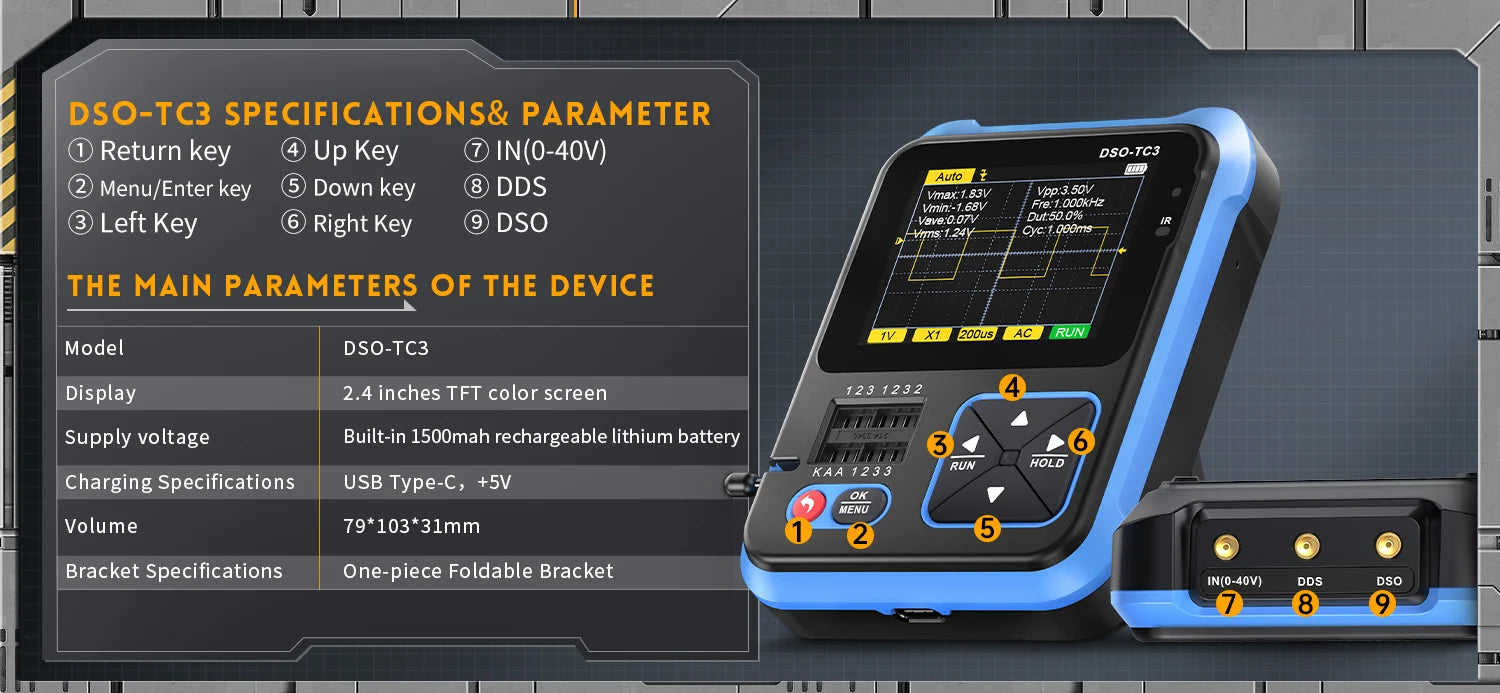

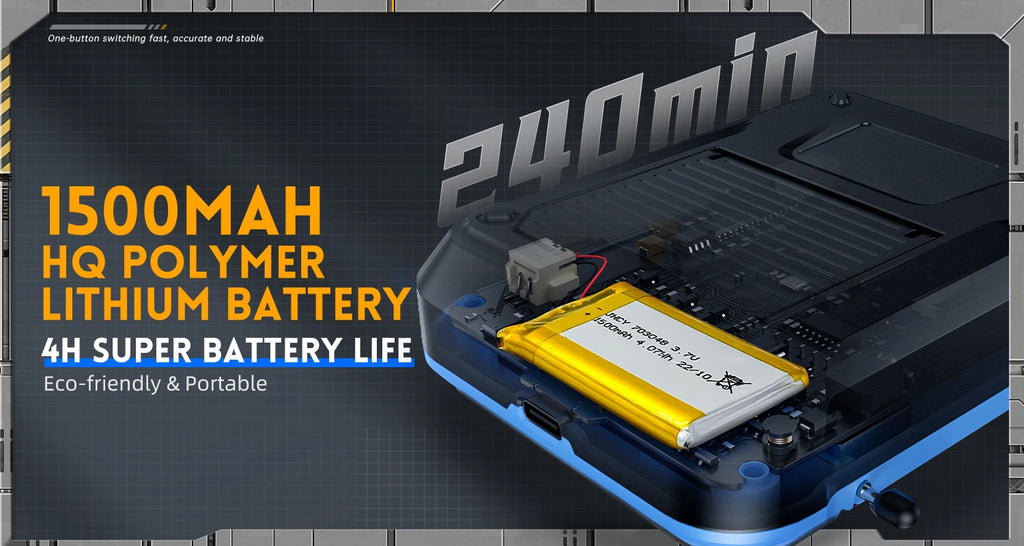

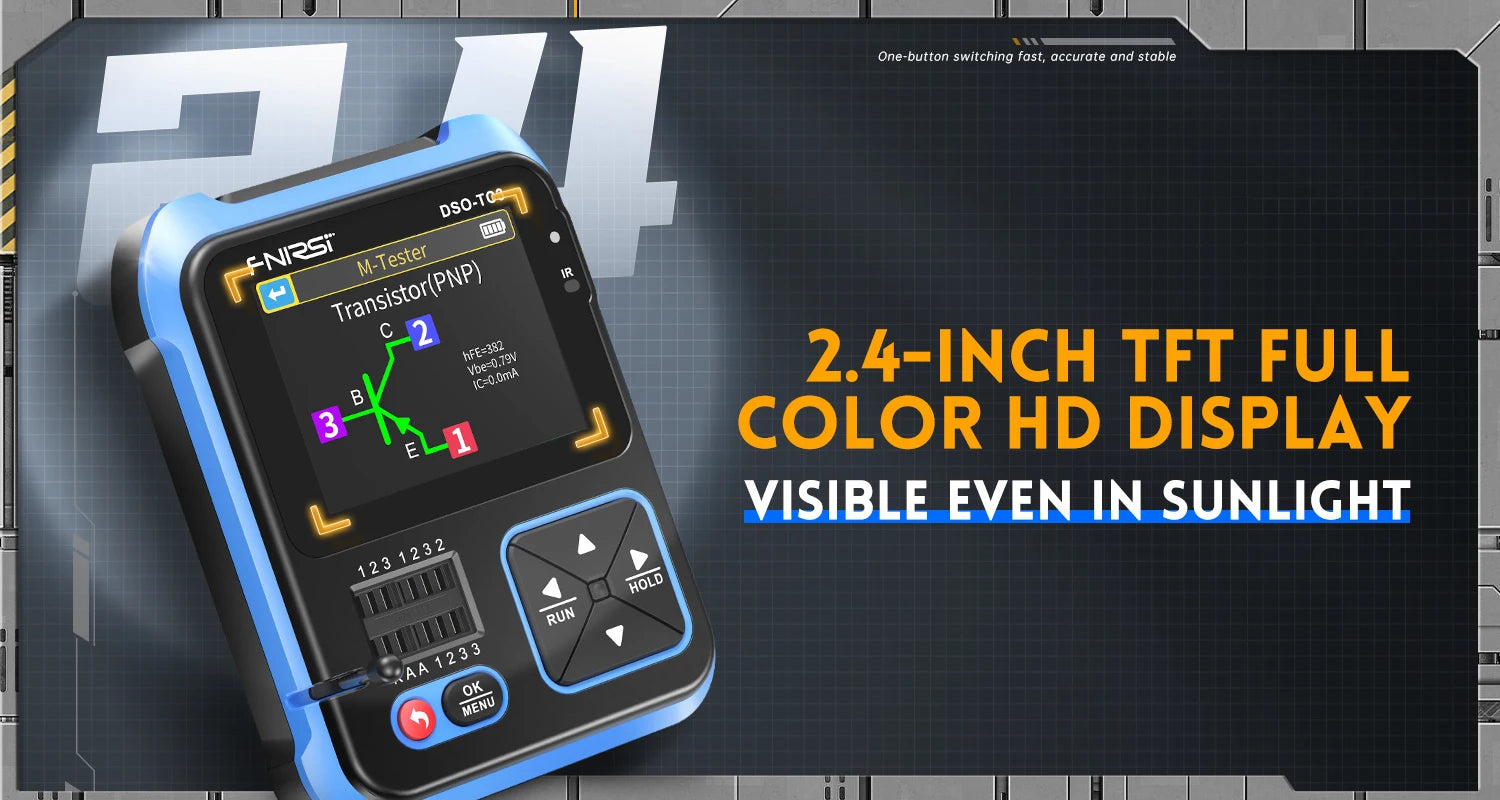

The DSO-TC3 is a versatile digital oscilloscope and electronic component tester designed for accuracy and portability. Featuring a vibrant 2.4-inch TFT color display, it integrates multiple functions, including signal generation, continuity and voltage testing, temperature and humidity measurement, and infrared decoding. This latest model offers enhanced performance with improvements in capacitance ESR detection, oscillograph bandwidth, and sampling rate. Its rechargeable lithium battery ensures convenience on the go, making it an ideal tool for professionals and hobbyists alike.

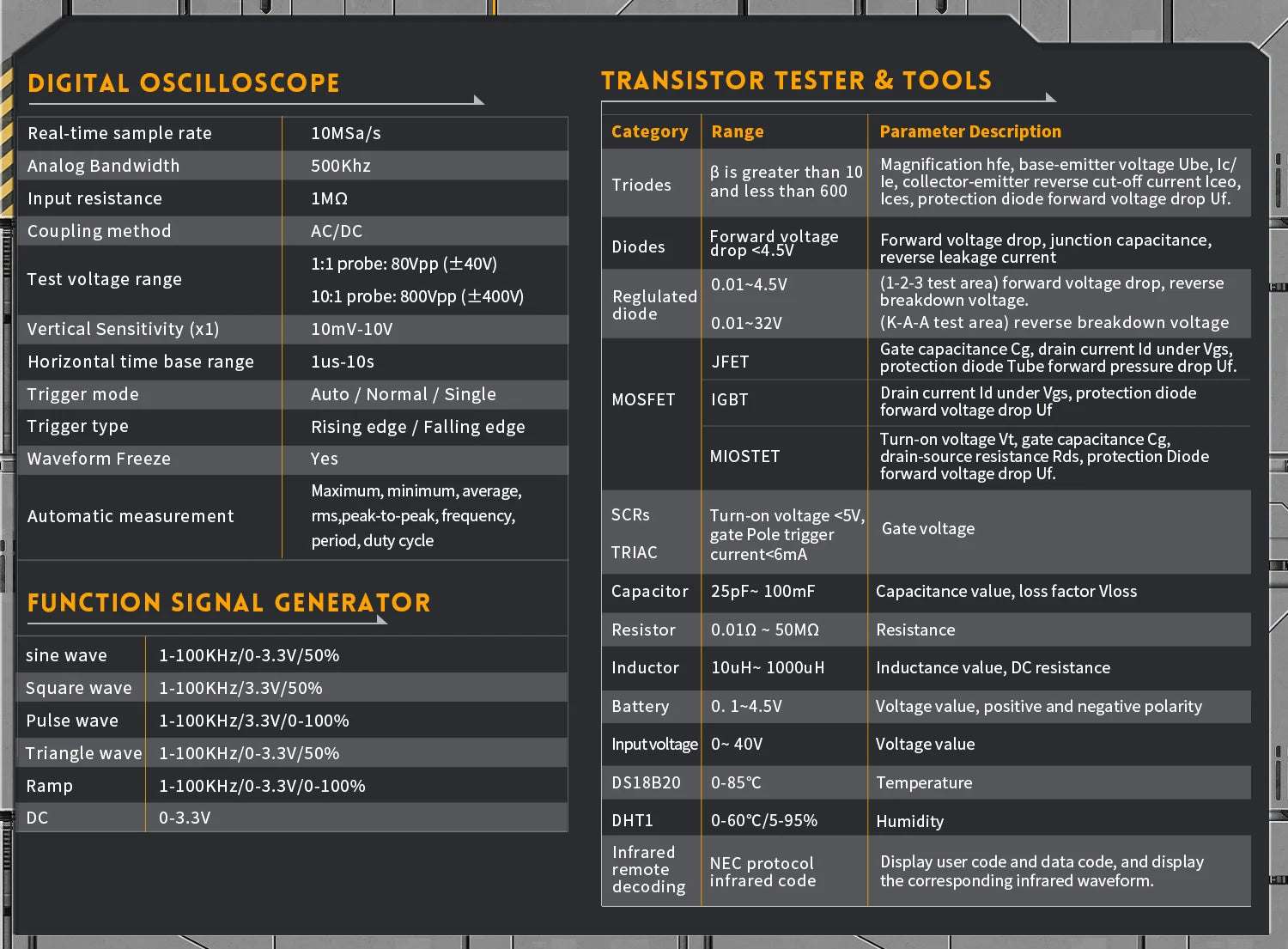

### Features

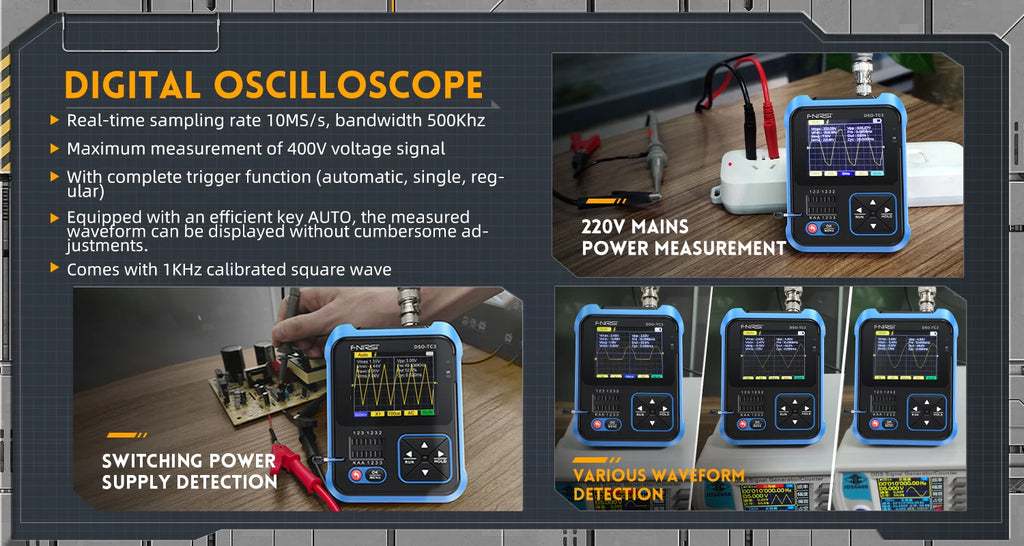

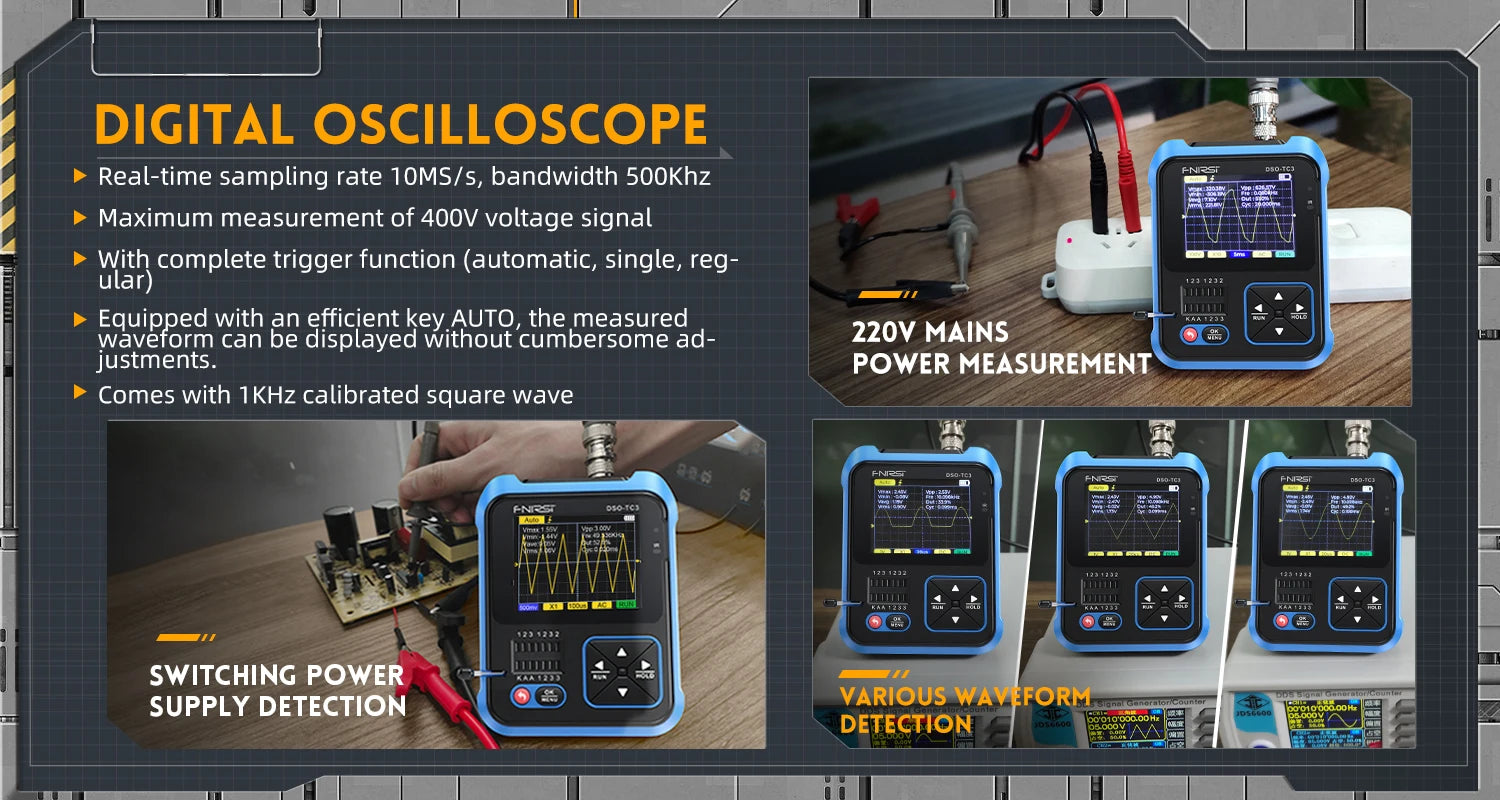

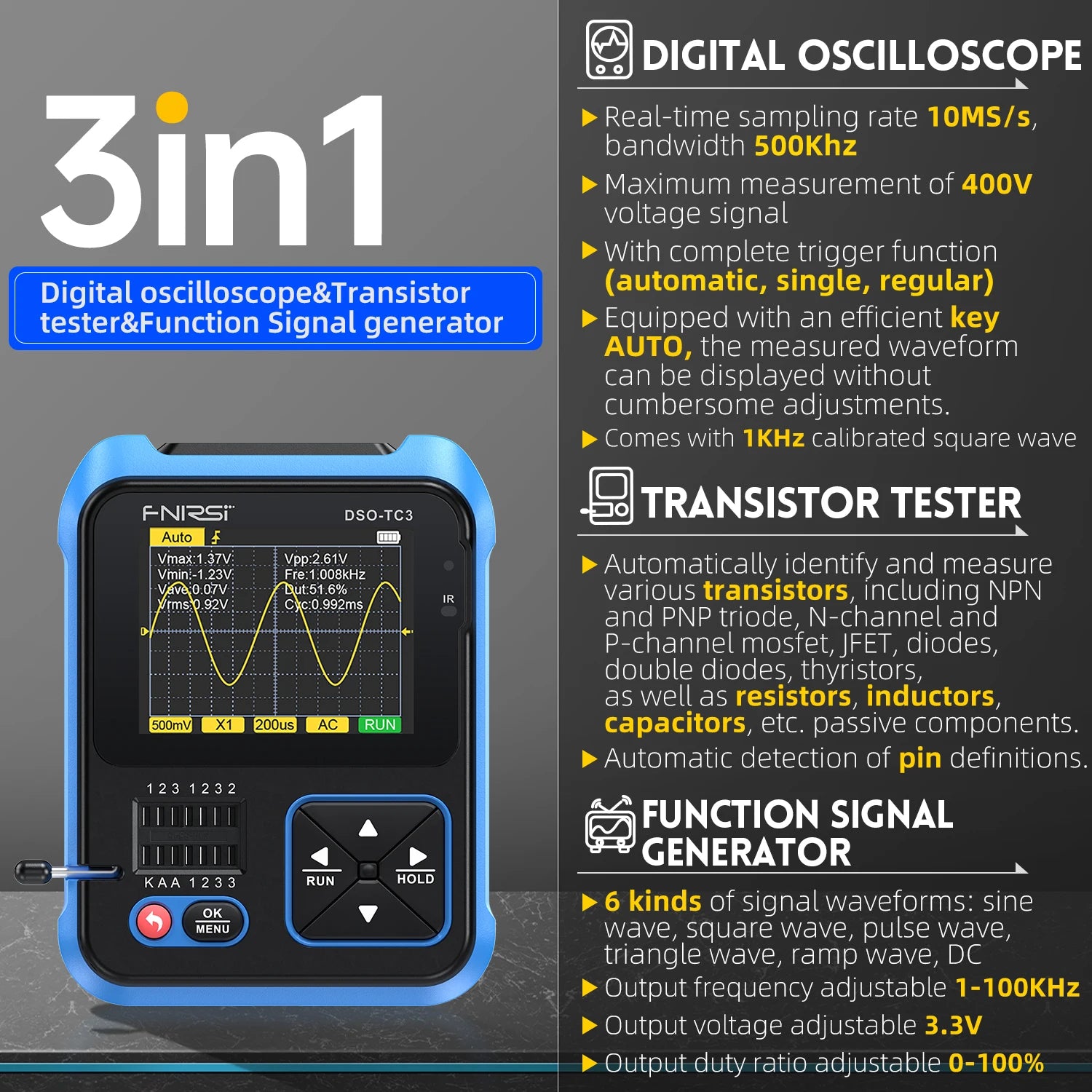

Oscilloscope:
- Real-time Sample Rate: 10MSa/s
- Analog Bandwidth: 500kHz
- Input Resistance: 1MΩ
- Test Voltage Range: 400V
- Vertical Sensitivity: 10mV-10V
- Horizontal Time Base Range: 1μs-10s
- Trigger Modes: Auto / Normal / Single
- Waveform Freeze: Yes

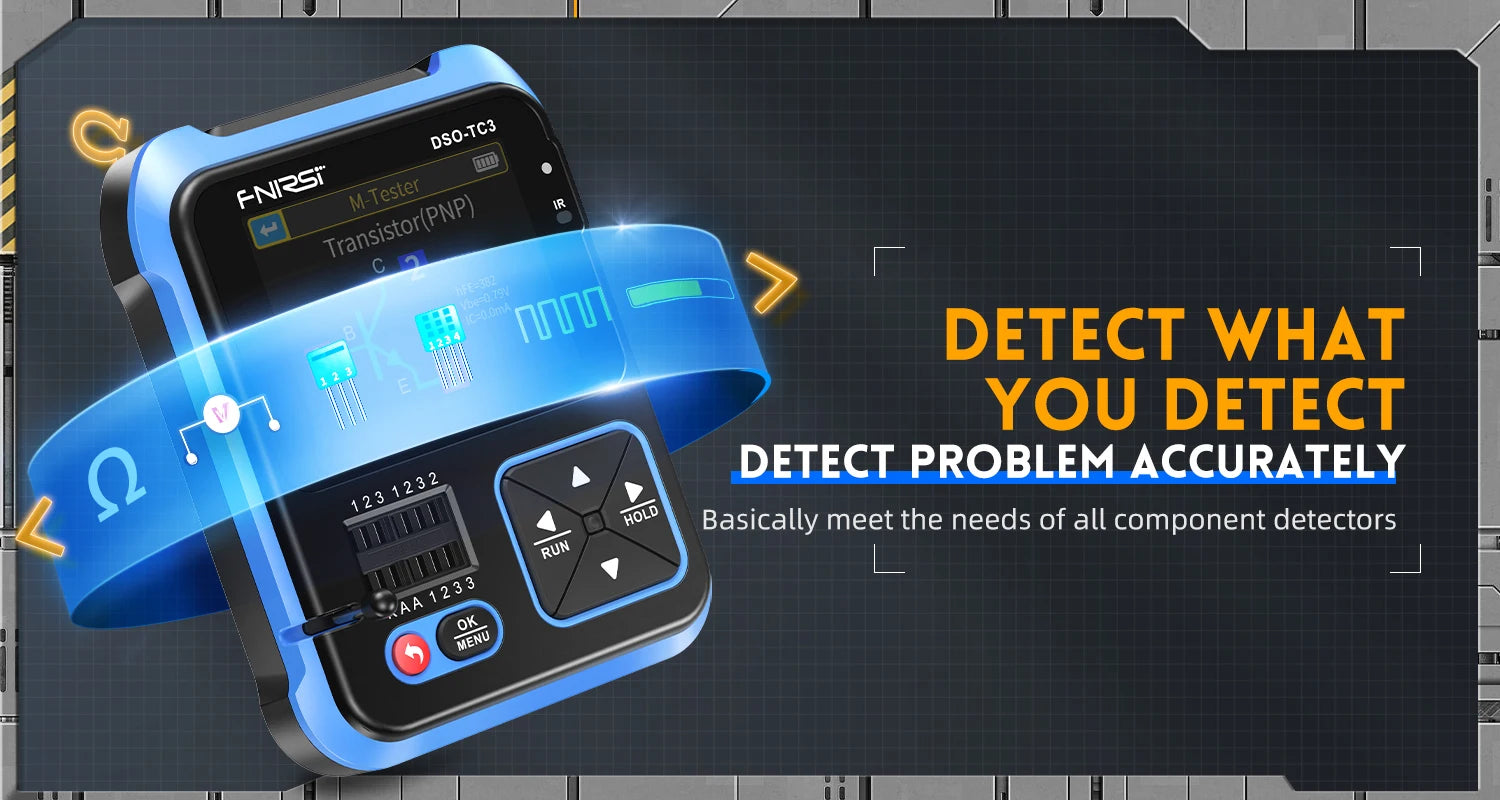

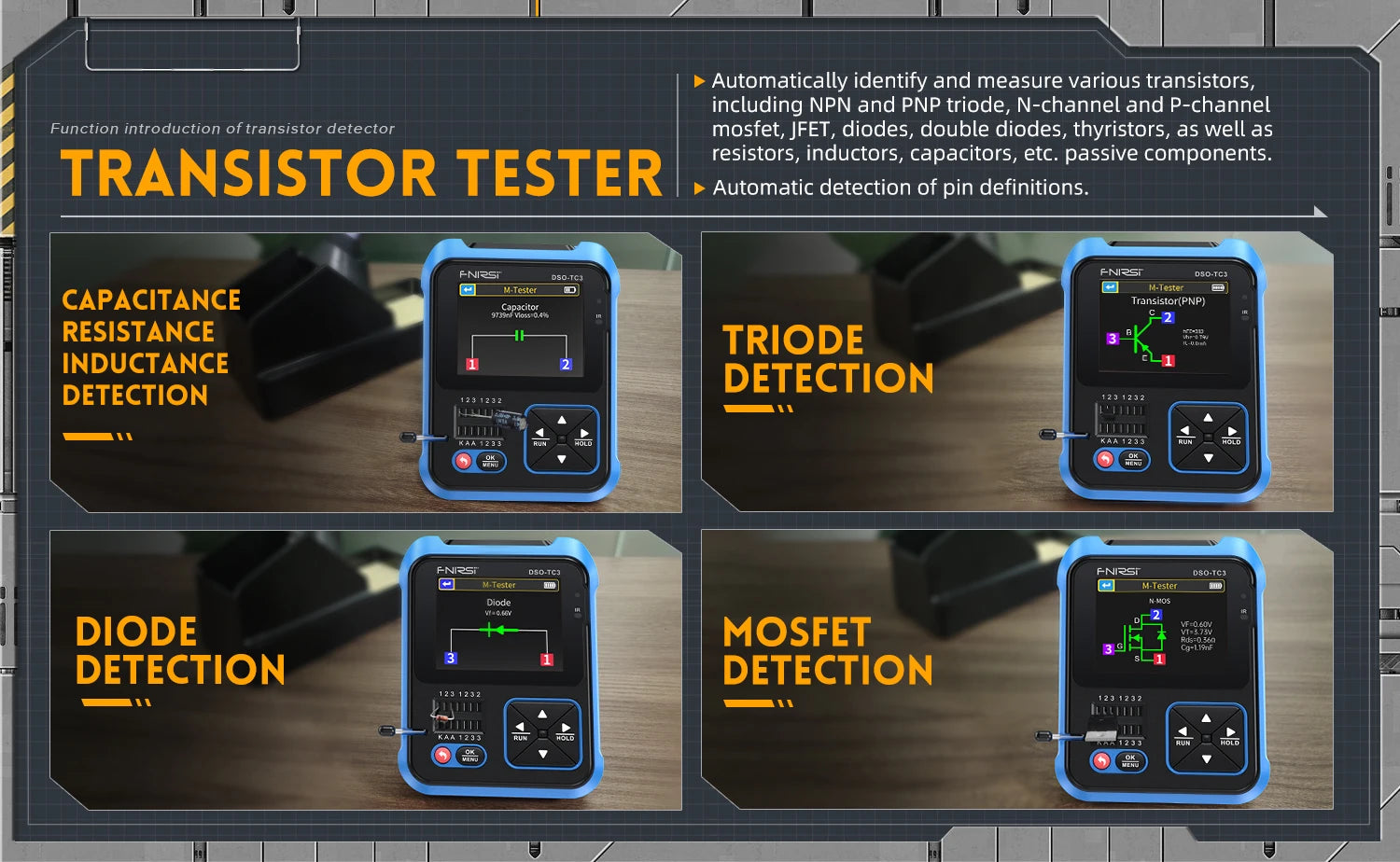

Transistor Tester:
- Triodes: β range of 10-600
- Diodes: Forward voltage drop <4.5V
- Capacitor Range: 25pF-100mF
- Resistor Range: 0.01Ω-50MΩ
- Inductor Range: 10μH-1000mH

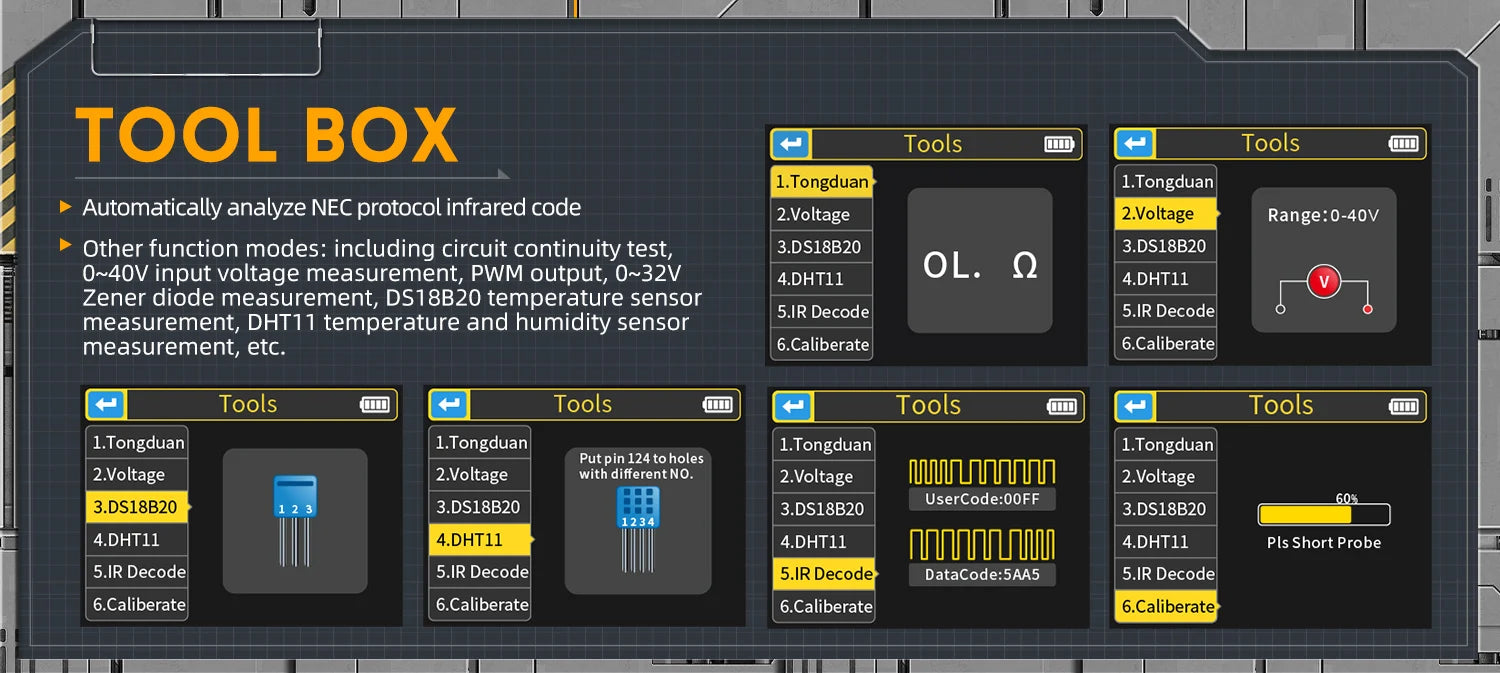

- Infrared Remote Decoding: NEC protocol

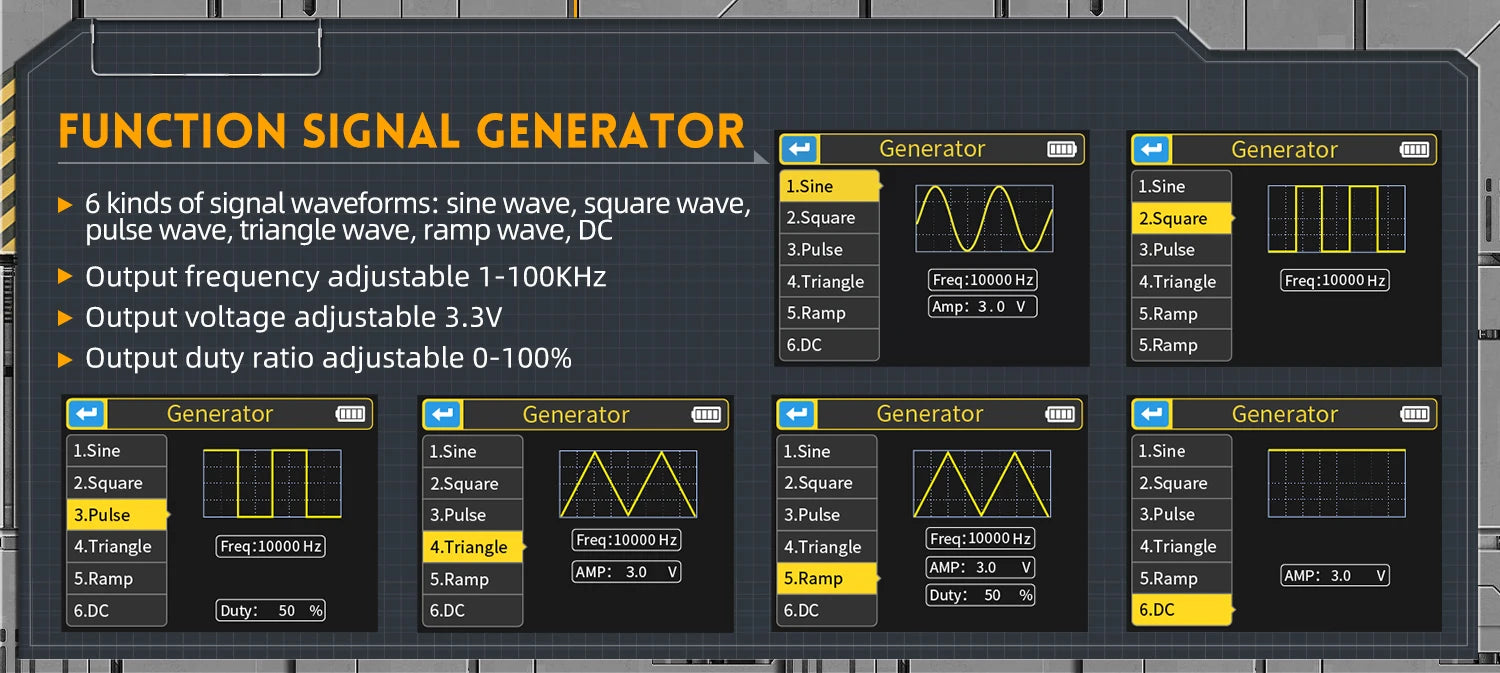

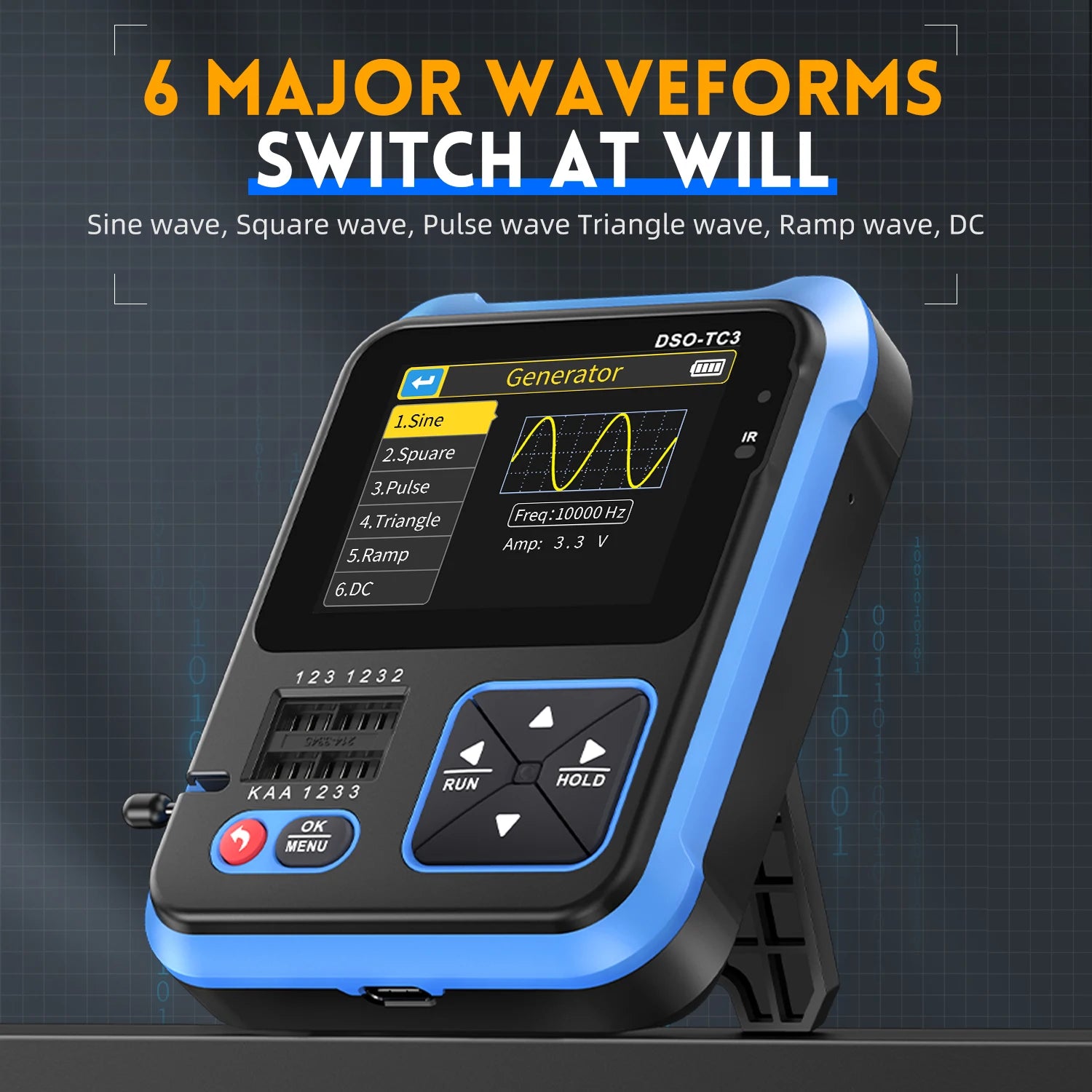

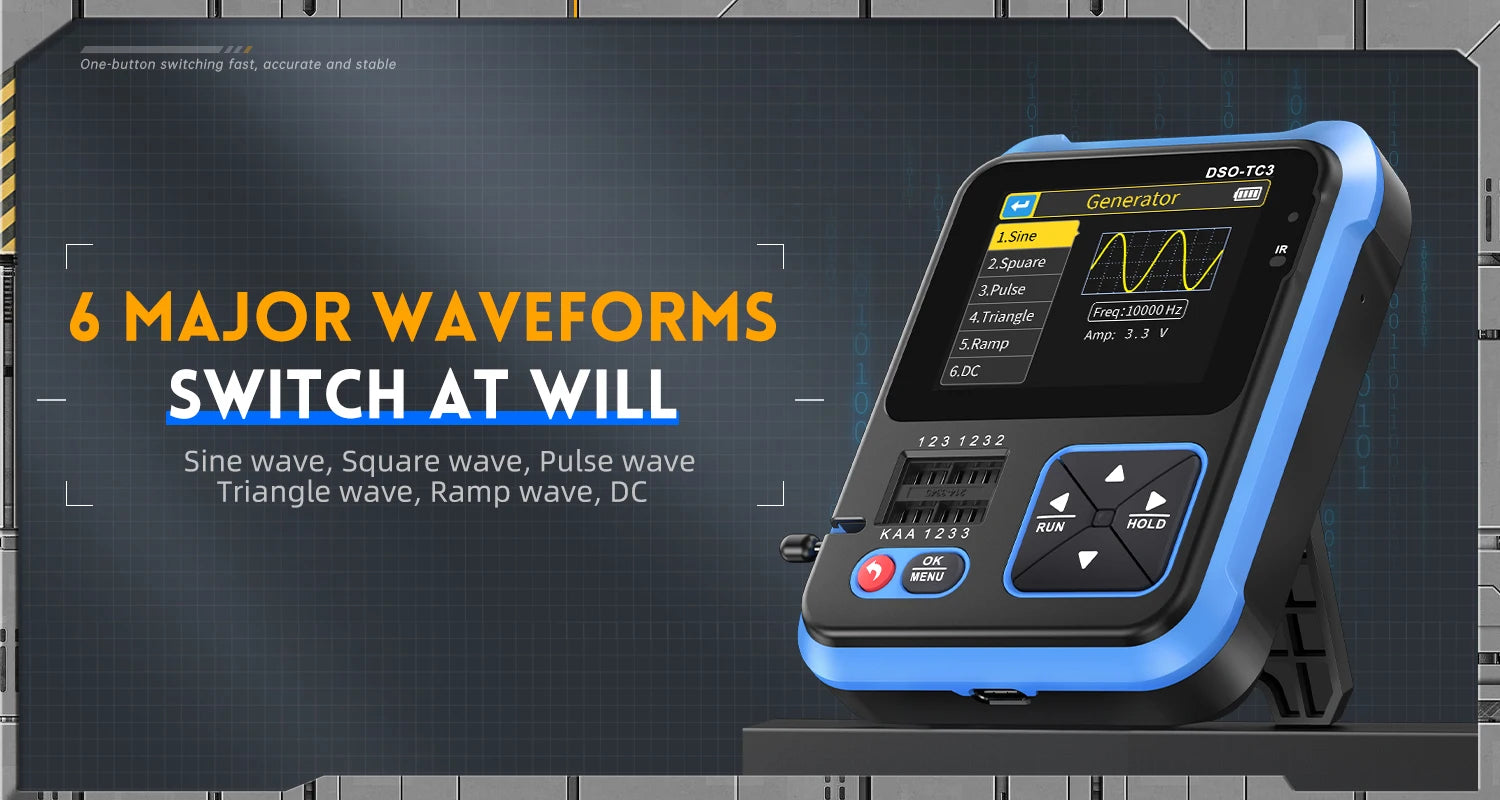

Function Signal Generator:
- Sine Wave: 1-100kHz at 0-3.3V
- Square Wave: 1-100kHz at 3.3V
- Pulse Wave & Triangle Wave: 1-100kHz at 0-3.3V

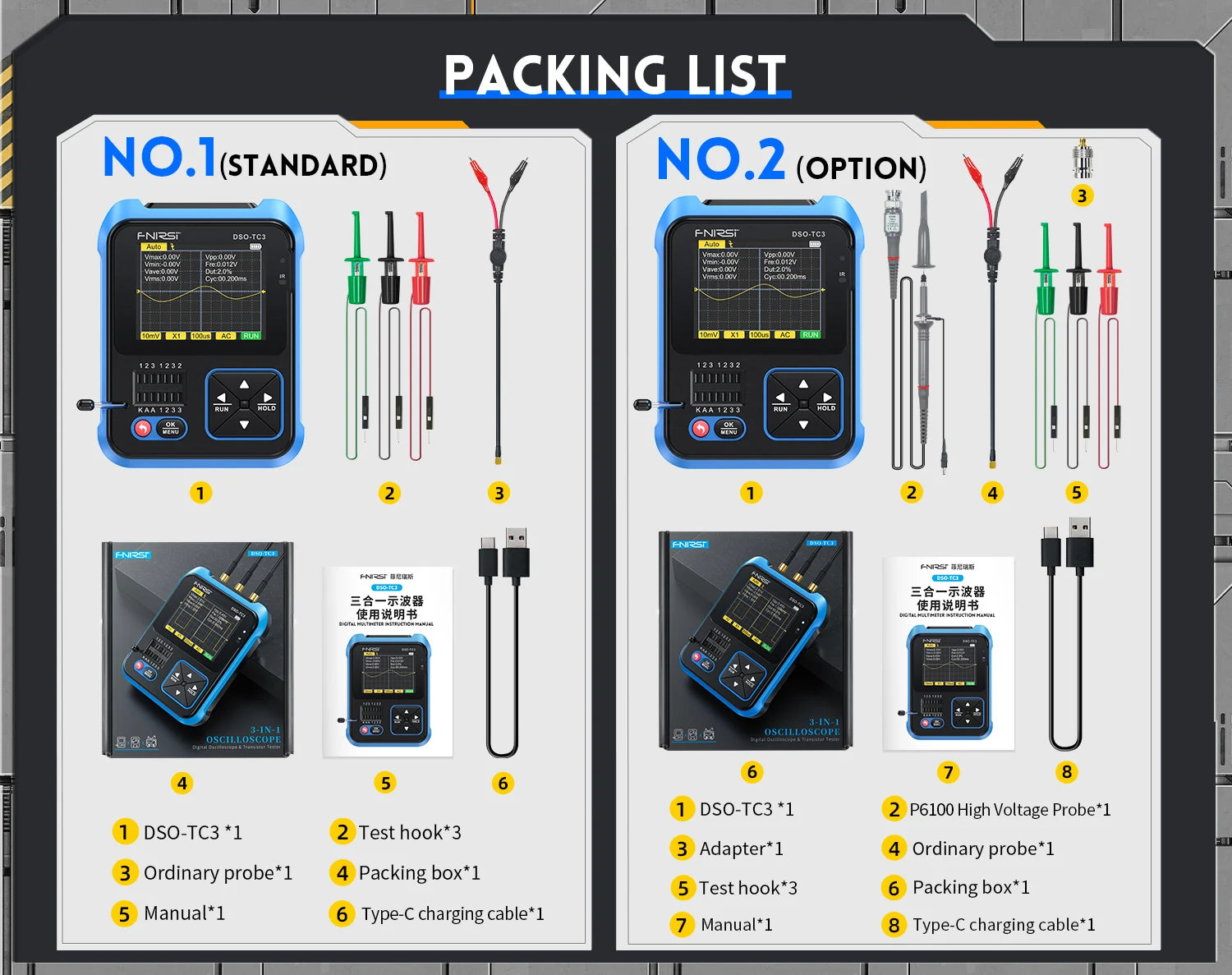

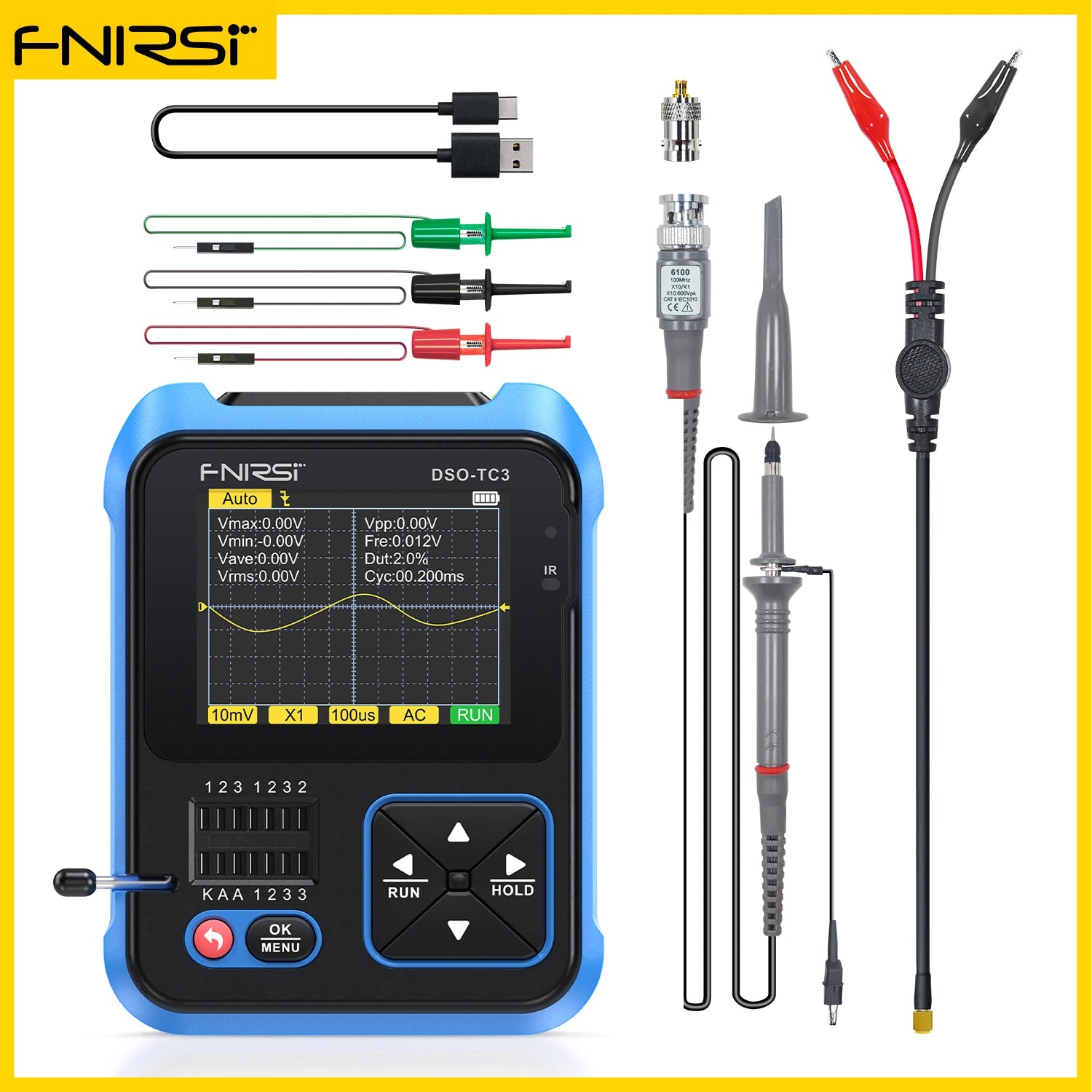

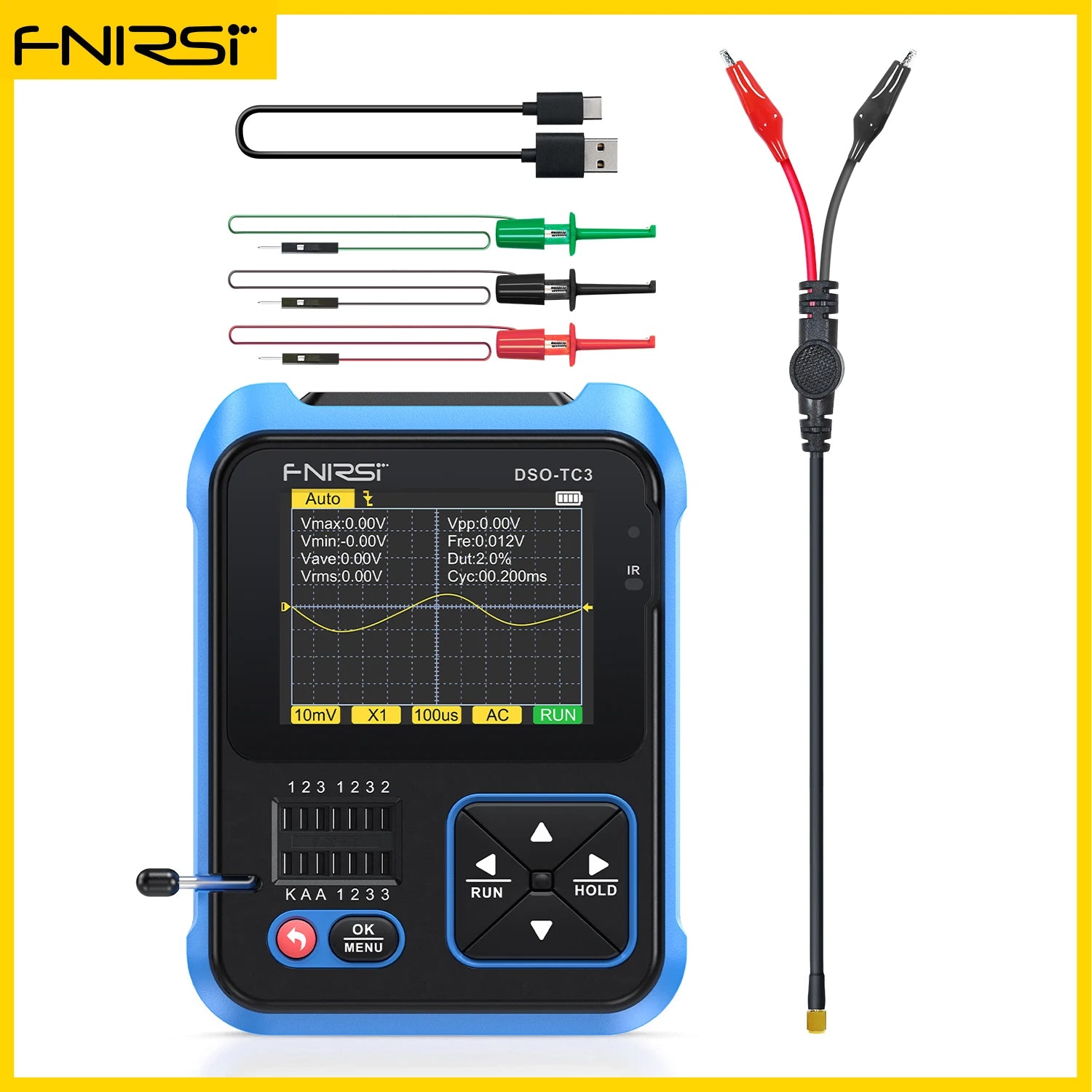

Package Includes:
- DSO-TC3 Device
- Probes and Test Hooks

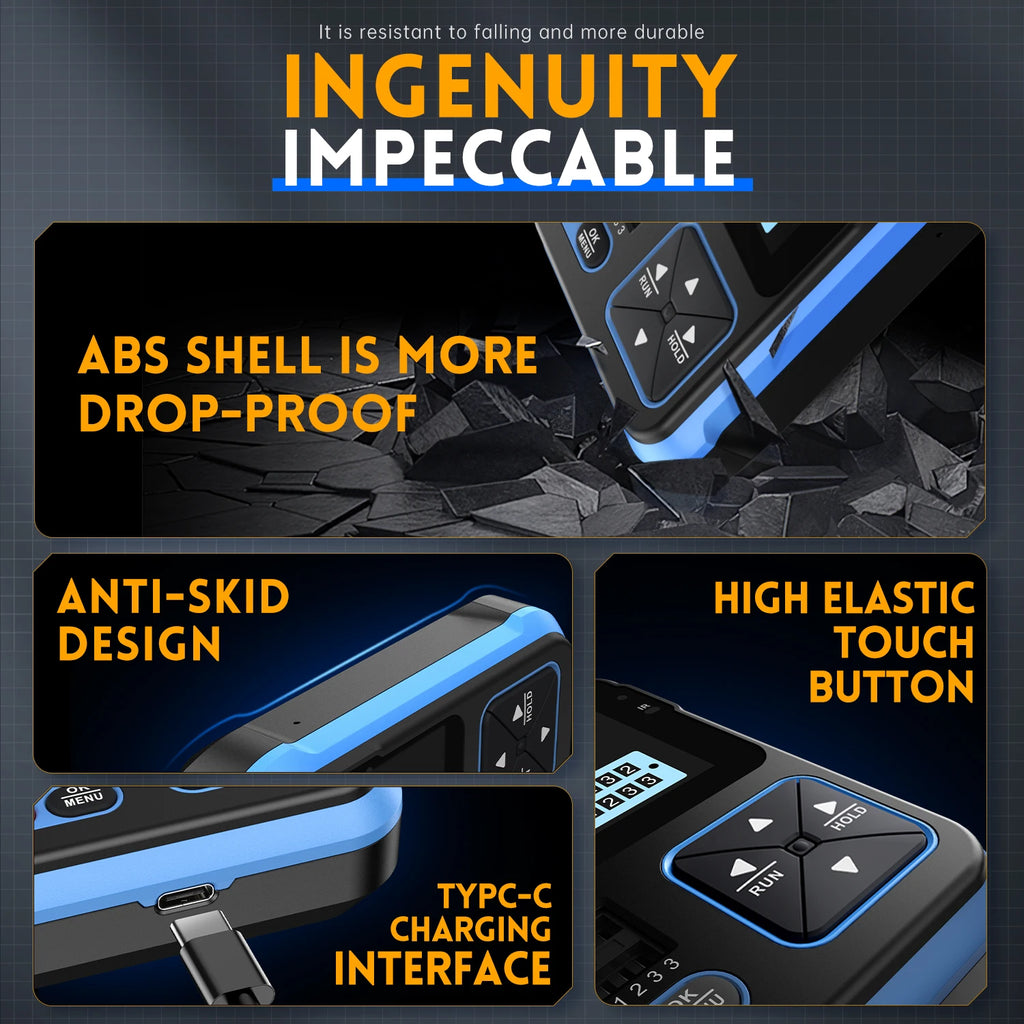

- Type-C Charging Cable
- User Manual
Ready for a wide range of electrical and DIY applications, the DSO-TC3 is an indispensable tool in any toolkit.
