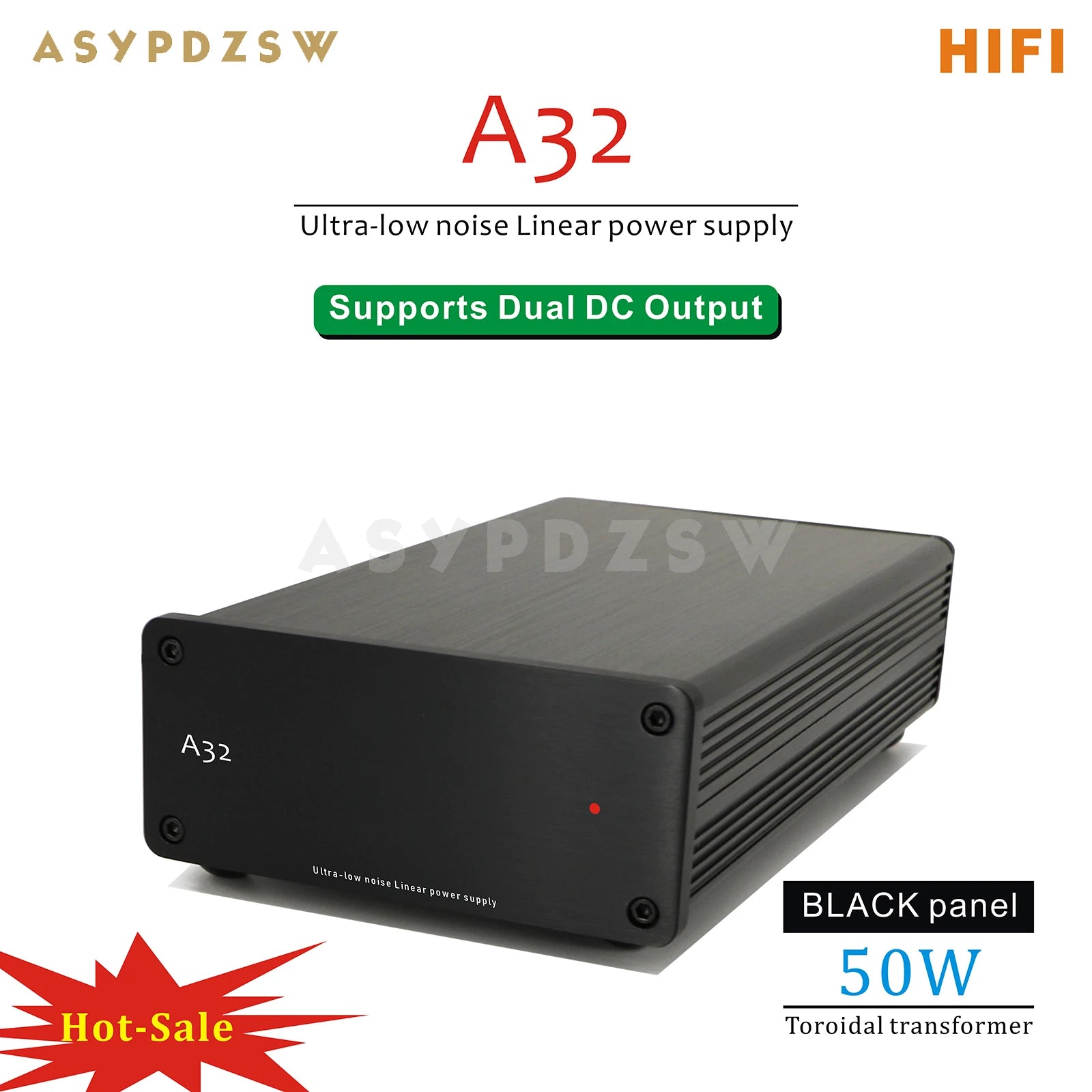

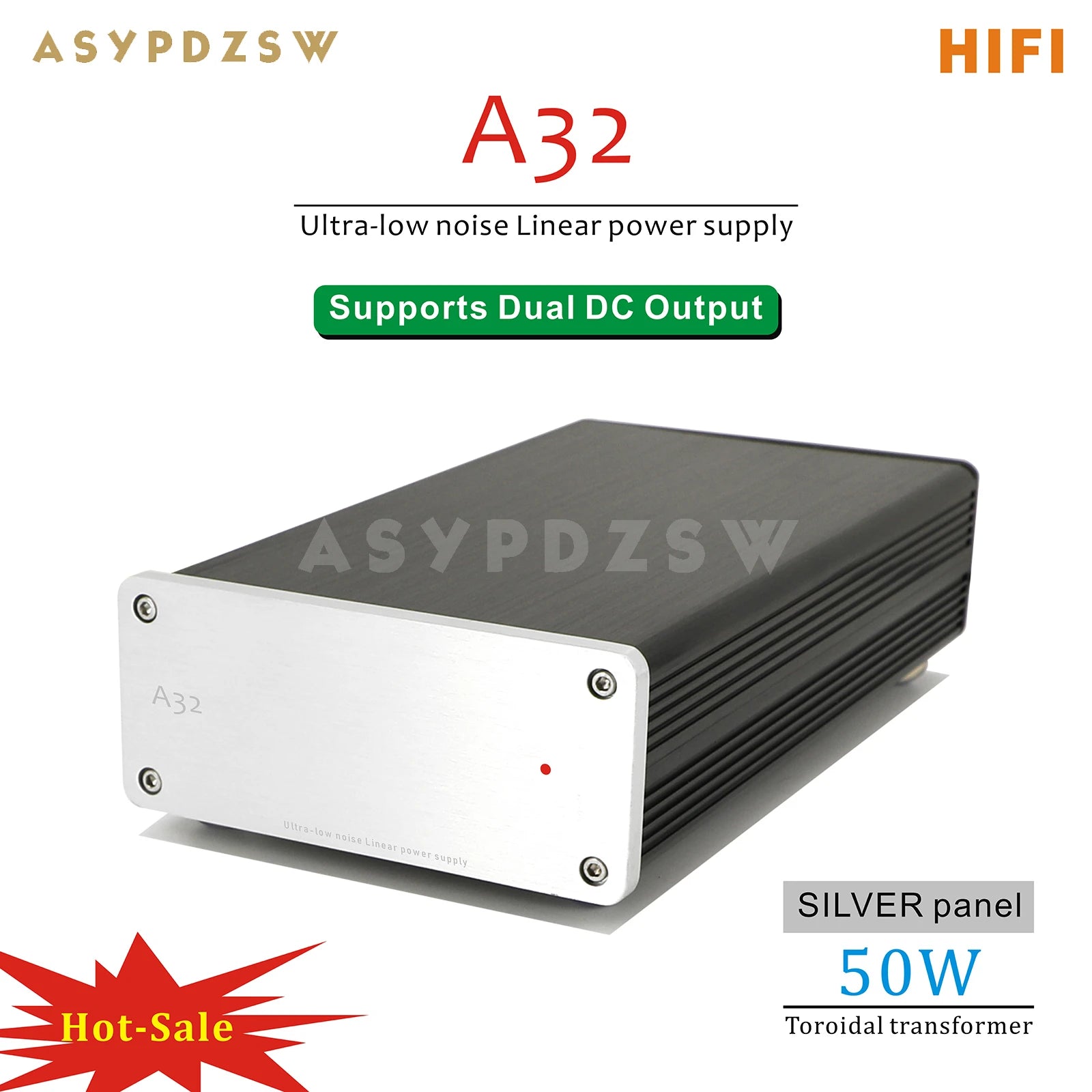

Ultra-low Noise Linear Power Supply DC 5V-24V LPS A32 50VA Hifi

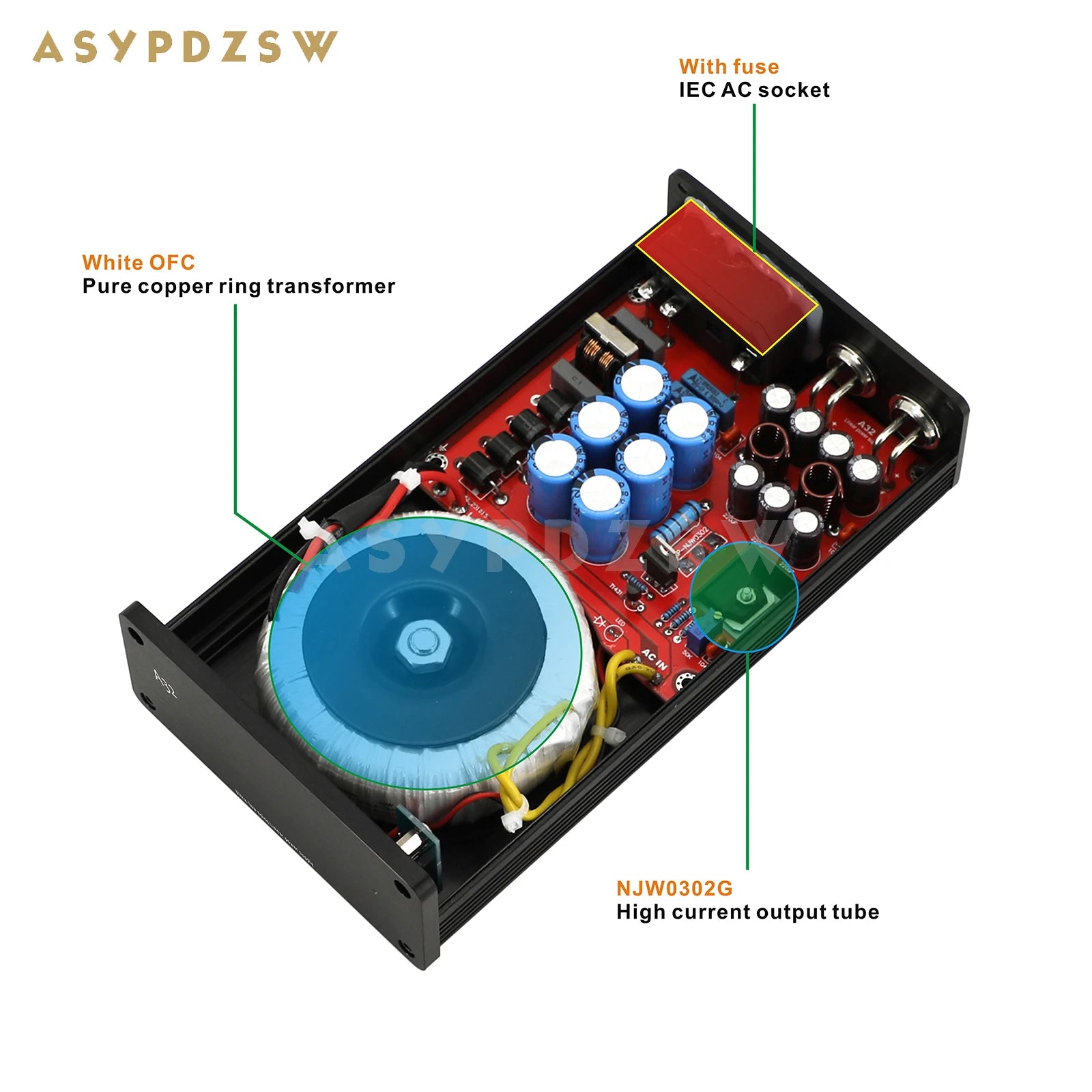

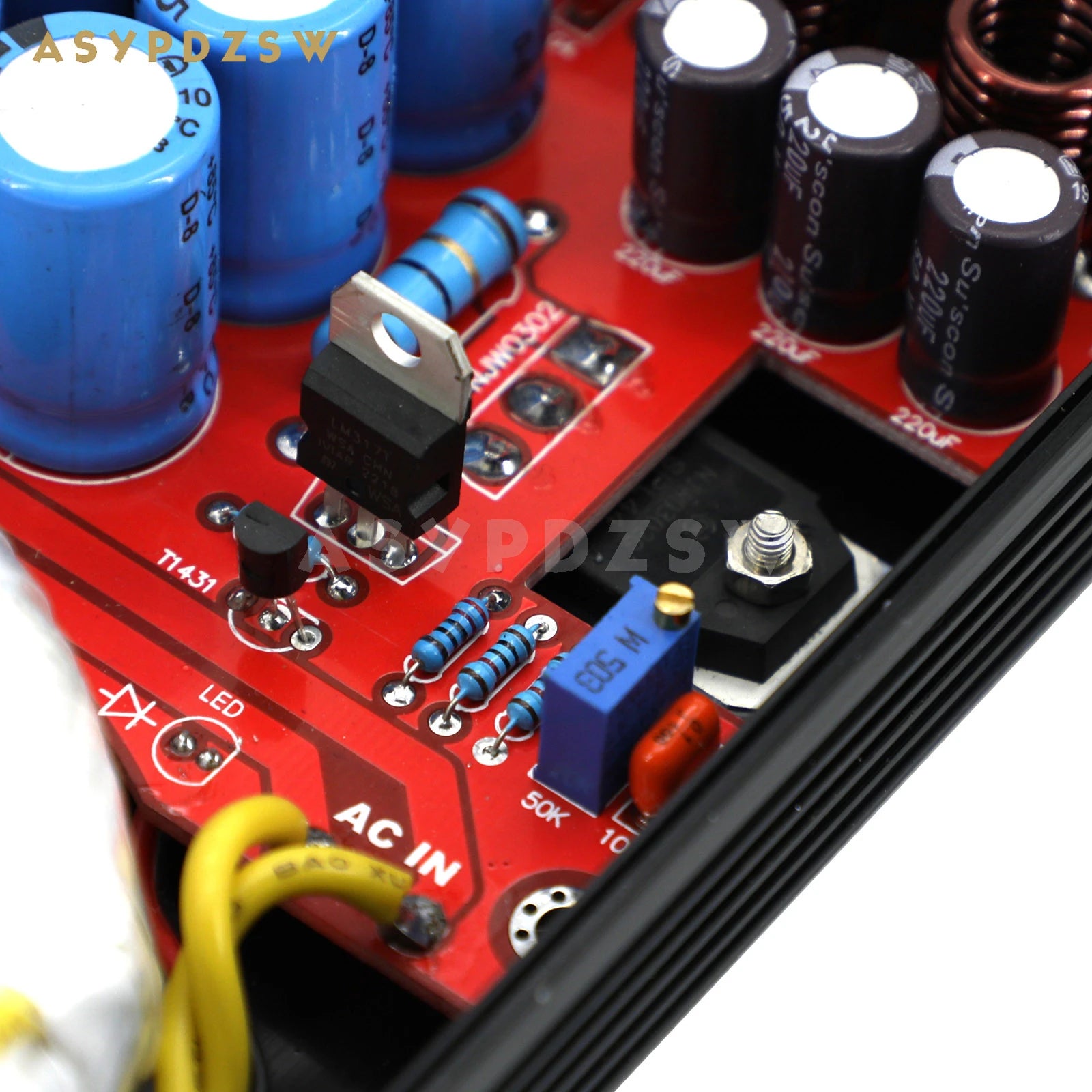

Experience superior performance with the A32 HiFi Ultra-Low Noise Linear Power Supply. Designed for enhancing audio and digital equipment, this power supply features a cutting-edge TL431+ high-power transistor and discrete voltage regulator circuit. Its sophisticated 3-level EMC filtering system—comprising EMI, capacitor array, and CLC—ensures minimal output ripple, offering exceptional clarity and efficiency in powering devices.

Ideal for a range of applications, including audio equipment upgrades, NAS hard disk boxes, set-top boxes, PCs, wireless routers, and more, the A32 provides dual output DC voltages that share the same level for higher combined output current. Choose from various output voltage/current options to fit your device's requirements.

Features:

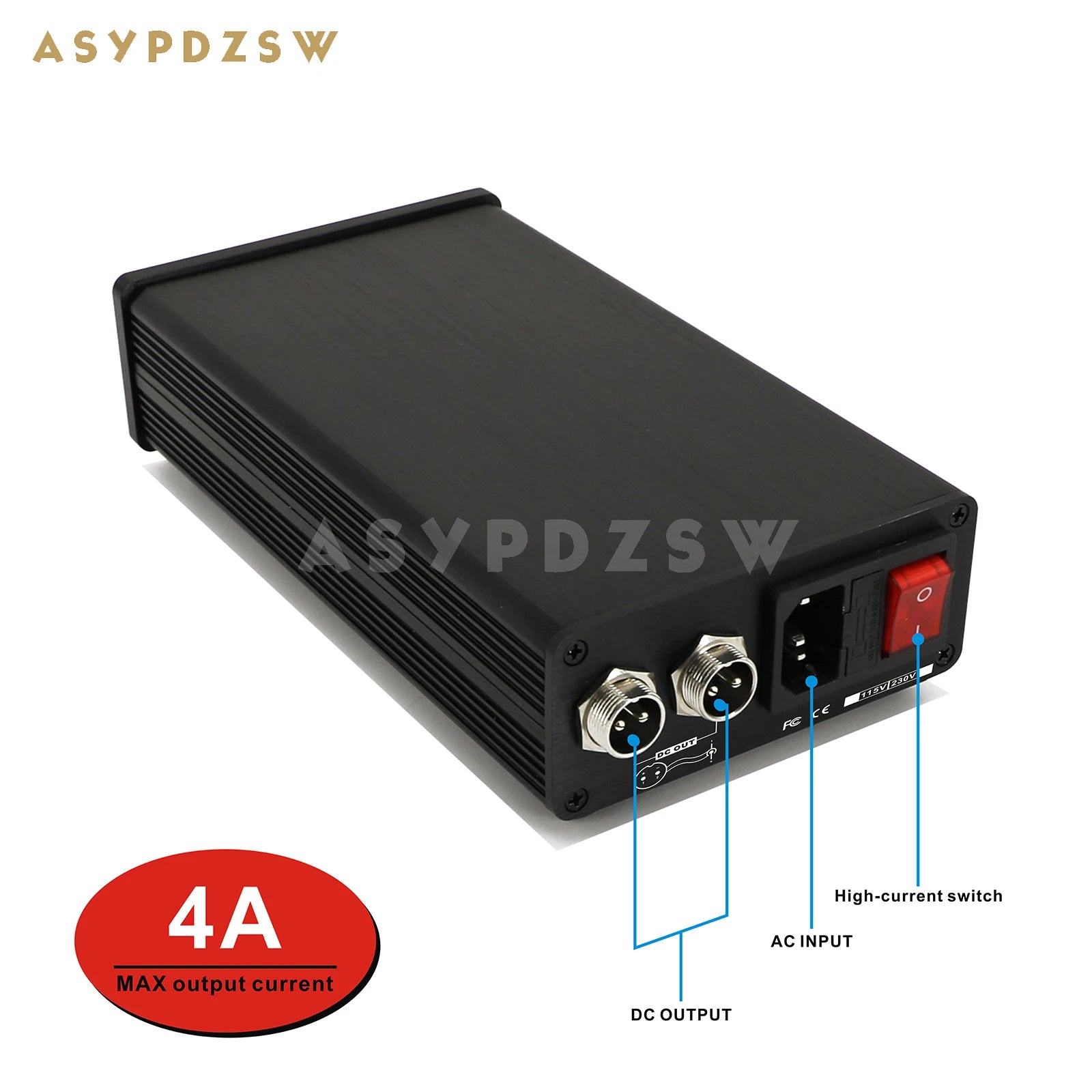

- Dual Output DC Voltages: Both outputs share the same voltage.

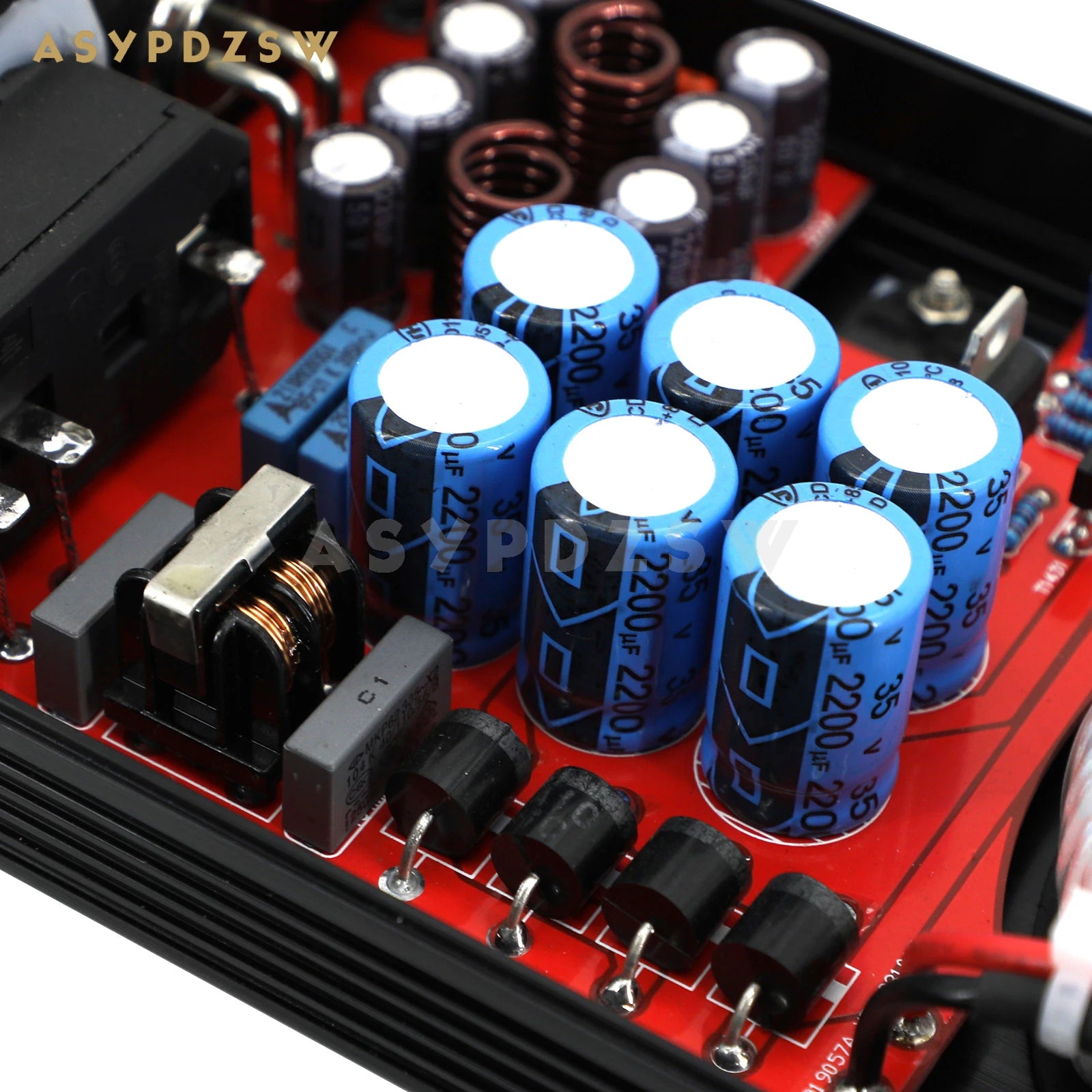

- Advanced Filtering System: Includes EMI, capacitor array, and CLC.
- Ultra-Low Noise Performance: Enhances audio clarity and device efficiency.
- Flexible Input Voltage: Supports AC 115V or 230V.
- Multiple Output Options:
- DC 5V / 3.5A
- DC 9V / 3.5A
- DC 12V / 4A
- DC 15V / 3.3A
- DC 18V / 2.7A
- DC 19V / 2.6A
- DC 24V / 2A
- Polarity Details:

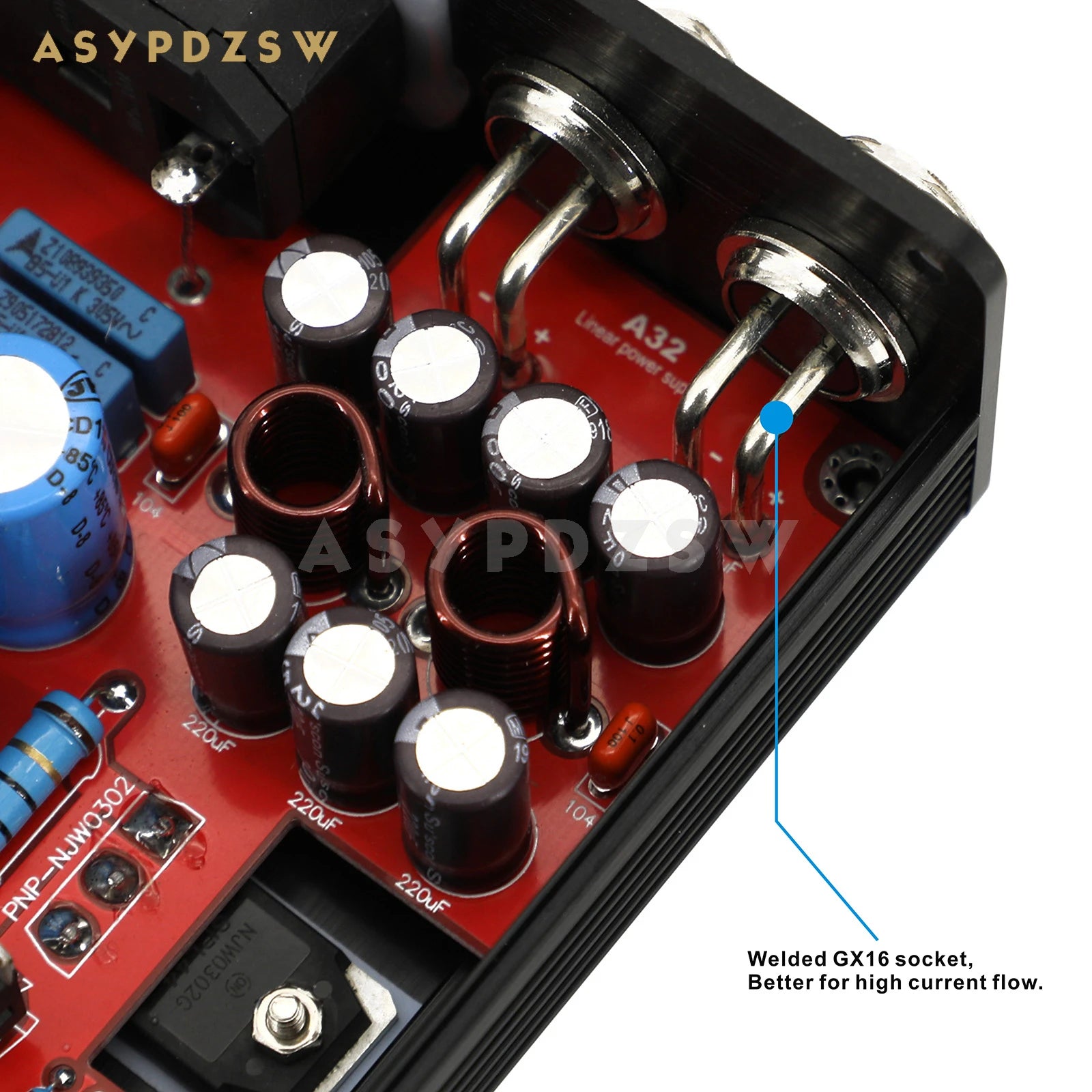

- GX16-2 PIN socket: 1+ (Positive), 2- (Negative)
- DC Plug: Internal +, External -
- Compact Design: 118mm x 50mm x 221mm (W*H*D) with a weight of approximately 2.1KG.
- Package Includes:
- A32 Linear Power Supply x1

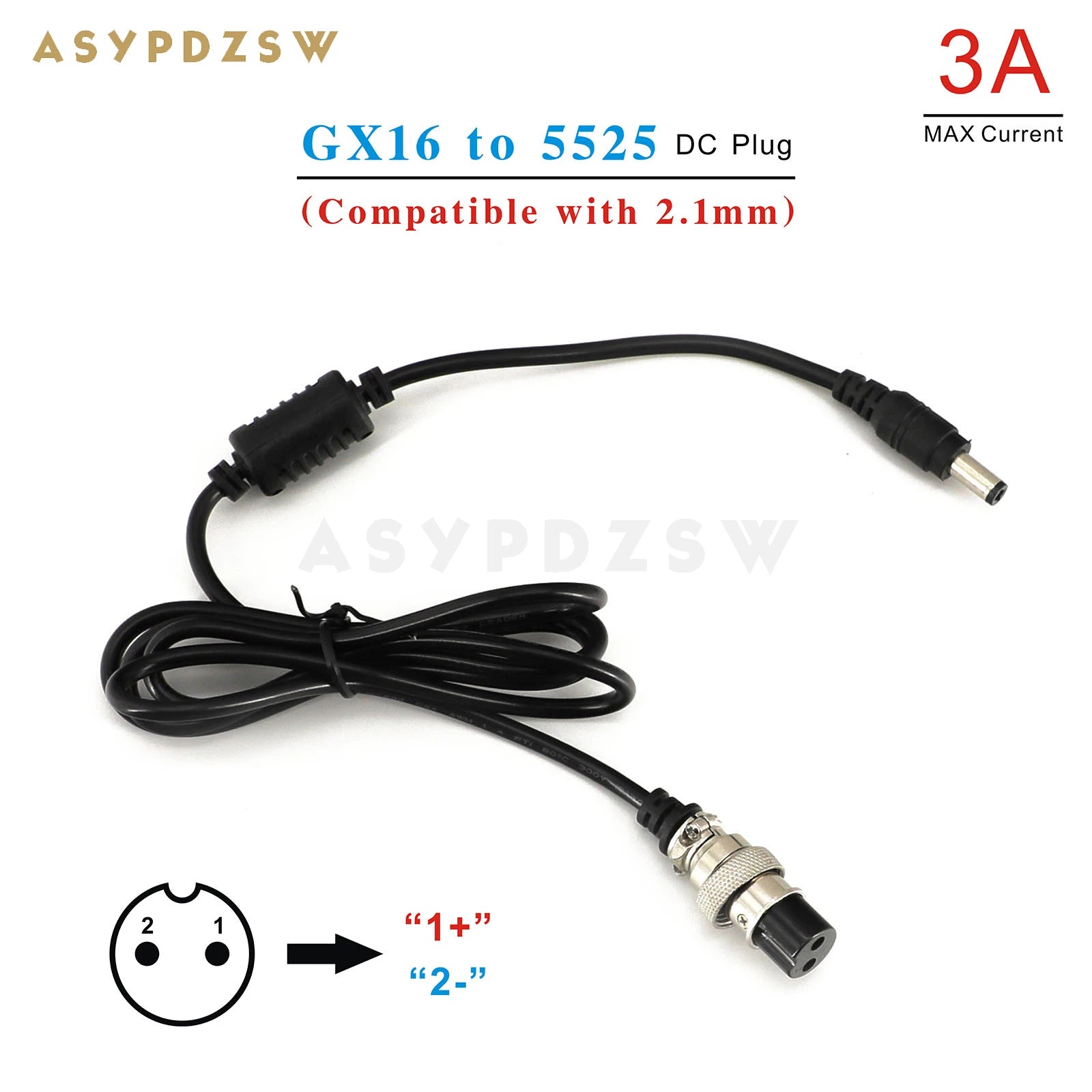

- 1.2M GX16-2 PIN to 5.5*2.5mm DC output cable x2

Note: AC input cable not included.
