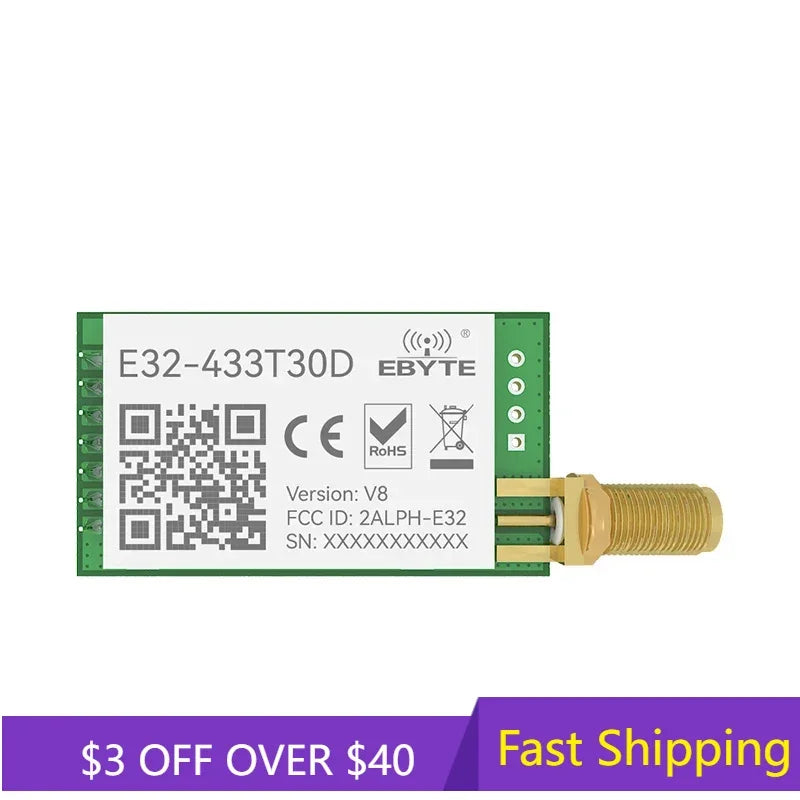

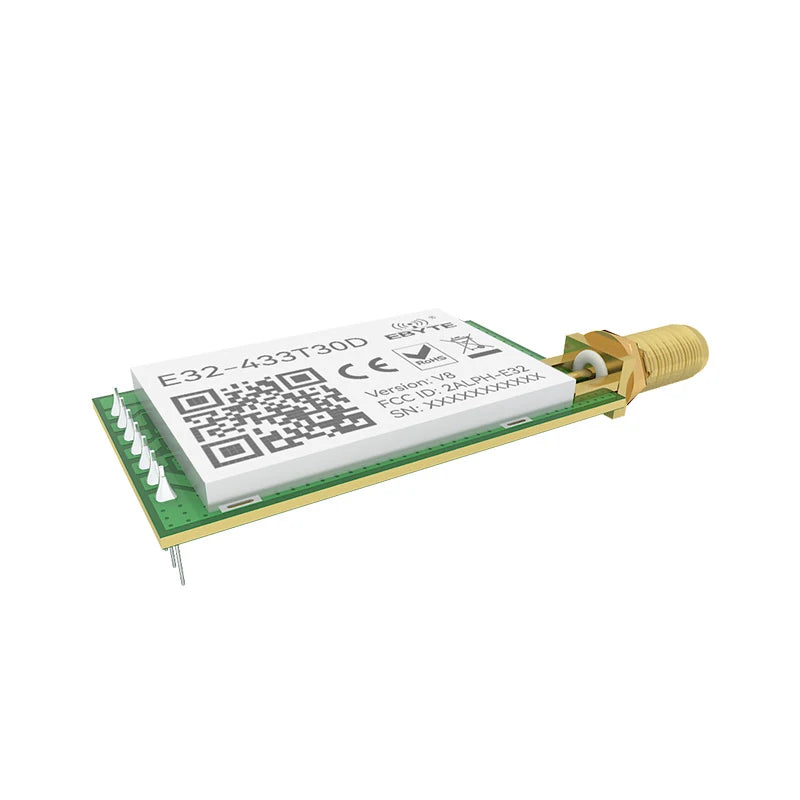

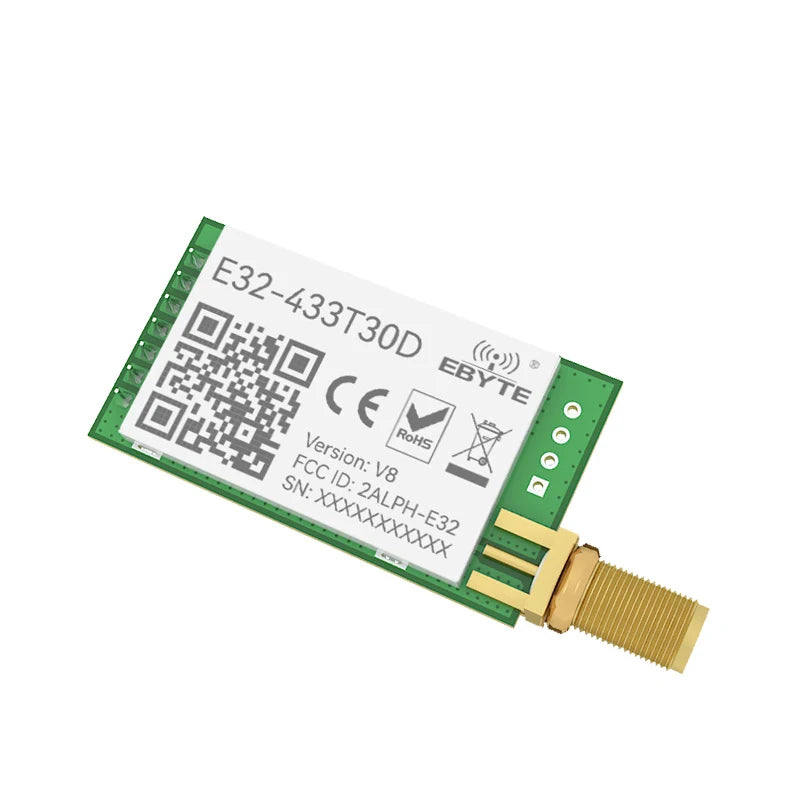

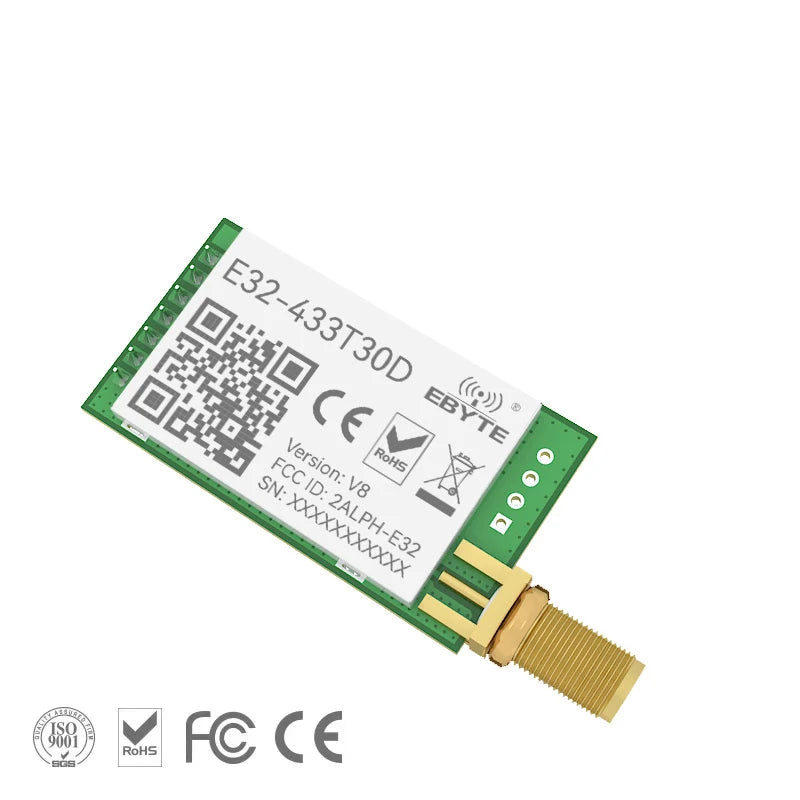

Long Range 8km Wireless RF Transceiver 433MHz 1W Module UART Lora Txco E32-433T30D-V8

High-Range RF Transmitter Module – 8Km Capability

Introducing a powerful RF transmitter module designed to provide long-range communication up to 8000 meters. Ideal for various applications requiring robust data transmission, this module operates in the frequency range of 410~441 MHz, with a default setting of 433 MHz. It supports a maximum transmitting power of 30dBm, ensuring reliable connectivity even over large distances.

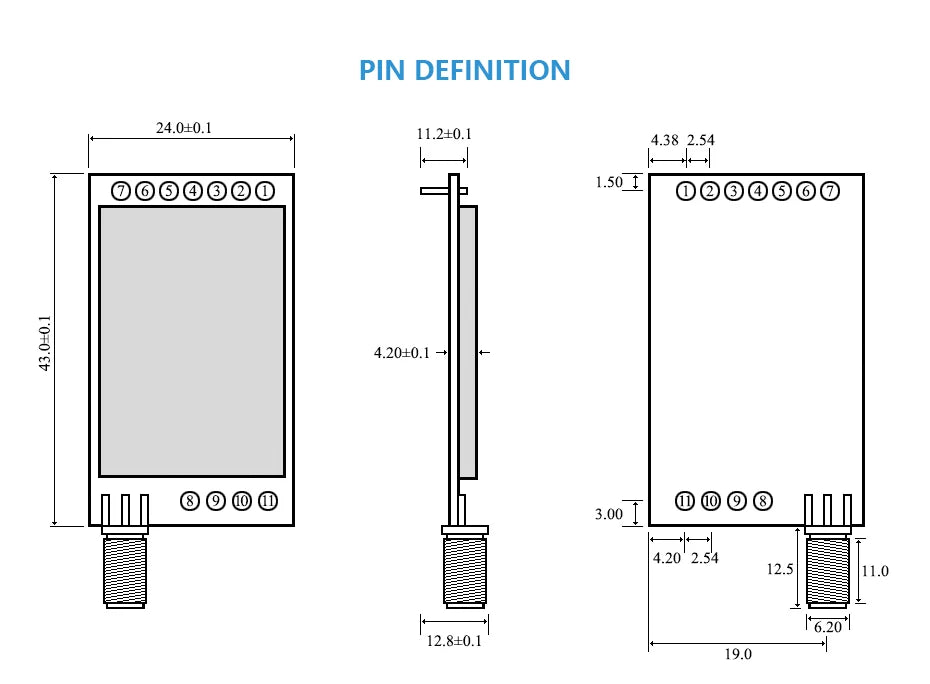

The compact design, measuring 24x43mm, allows for easy integration into diverse systems. Equipped with an SMA-K antenna connector and a UART interface, the module ensures seamless communication and installation flexibility. Its 512 bytes buffer and automatic sub-packaging feature handle data efficiently, enhancing performance.

Designed to work in challenging environments, this module operates at temperatures between -40℃ to 85℃ and can be stored in conditions ranging from -40℃ to 125℃. The wide voltage range of 2.8-5.5V and a low power consumption make it an energy-efficient choice.

Key Features:

- Long-Distance Transmission: Up to 8000 meters in open conditions
- Frequency Range: 410~441 MHz (Default: 433 MHz)
- High Power Output: 30dBm for strong signal transmission

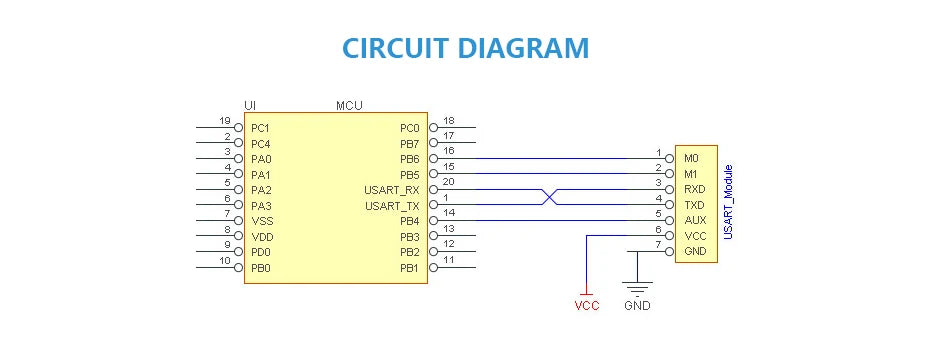

- Interface: UART with baud rate 1200~115200 (Default: 9600)
- Antenna Connector: SMA-K for reliable connections
- Compact Size: 24x43mm, easy integration
- Low Power Consumption: Designed for efficiency with sleep current as low as 4μA
- Wide Operating Temperature: -40℃ to 85℃

This RF transmitter module is an ideal solution for robust and reliable wireless communication needs across various applications.
